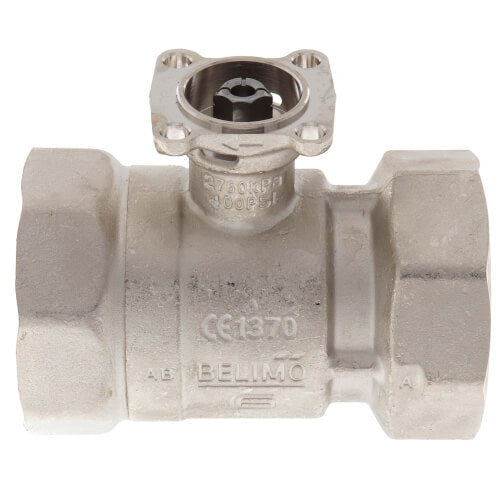

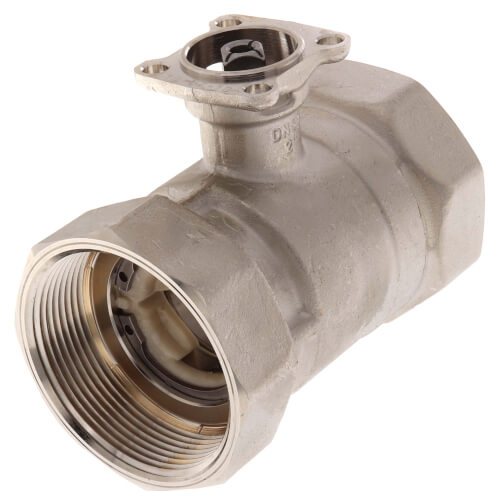

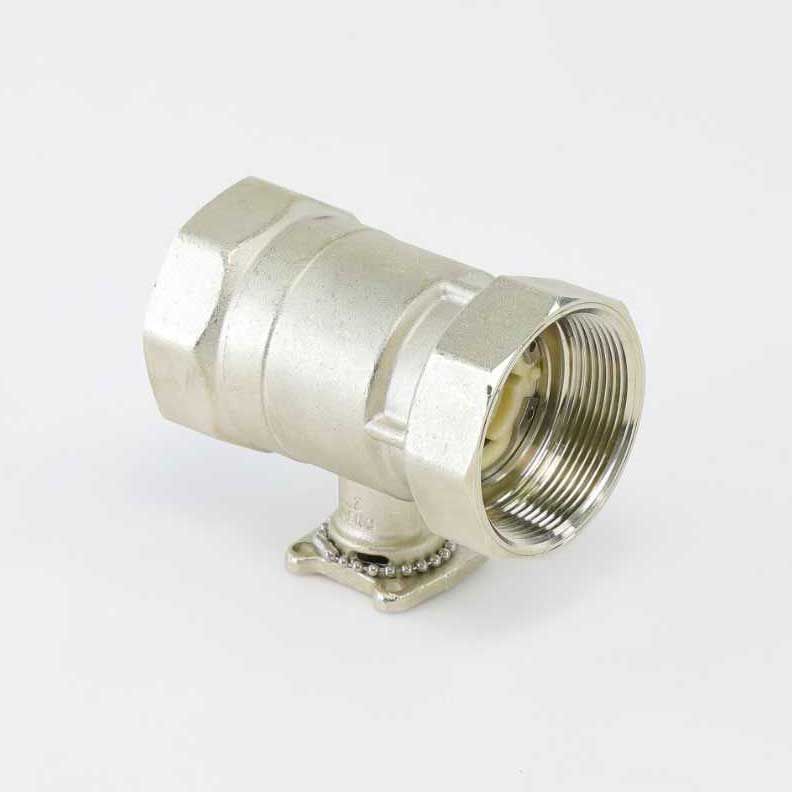

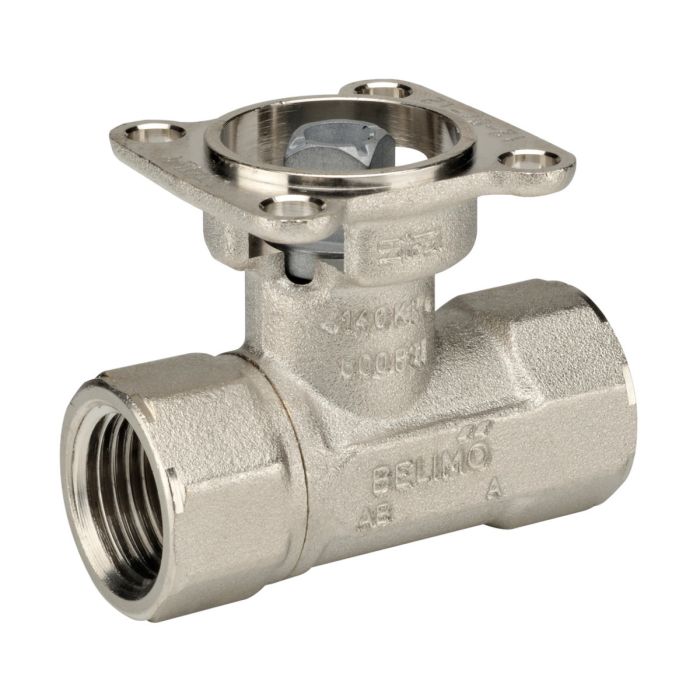

Belimo B249 CCV 2 Way 2 in NPT 46 Cv

Product Description

The Belimo B249 is a characterized control valve designed for effective temperature regulation in HVAC systems. It features a two-way configuration, incorporating a two-inch NPT connection and a flow capacity of 46 Cv. This valve is suitable for use in both hot and chilled water systems, allowing for versatile application in various hydronic systems.

• Commonly used in air handling units, fan coil units, and VAV box re-heat coils.
• Constructed from durable forged brass with stainless steel components for reliability.
• Operates effectively in temperatures reaching up to 250°F.

Product Highlights

This valve offers self-cleaning capabilities and zero leakage, ensuring consistent performance in variable flow applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B249

Technical Specifications

• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Trim Material: Stainless Steel
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Valve Size: 2 inches
• End Fitting: Internal thread
• Pressure Independent: No
