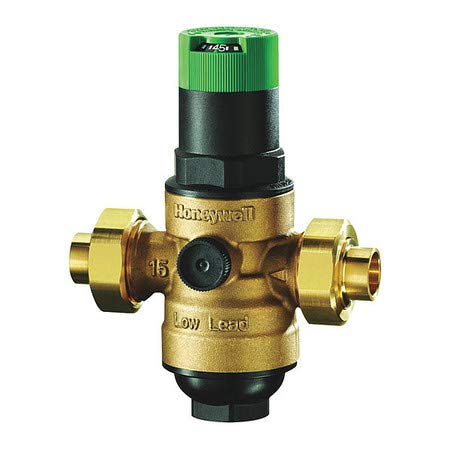

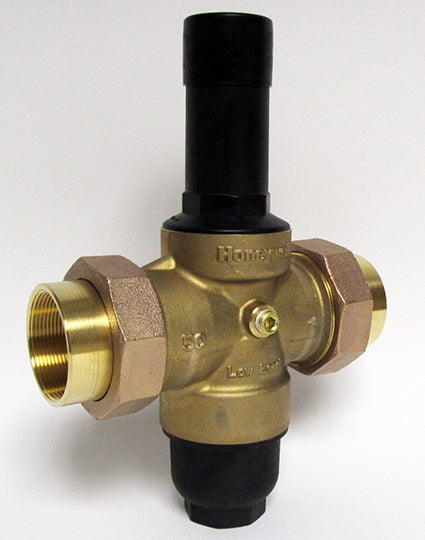

Honeywell DS06-105-DUT-LF Pressure Regulating Valve Double Union NPT Low Lead

Product Description

The Honeywell DS06-105-DUT-LF Pressure Regulating Valve offers precise control over your water pressure without the need for a traditional pressure gauge. Engineered for reliability and ease of installation, this valve enhances system efficiency and reduces maintenance efforts.

• Easy installation with double union NPT and built-in strainer.
• Adjustable outlet pressure from 25PSI to 90PSI suitable for various applications.
• Robust brass construction and fabric-reinforced diaphragm for durability.

Product Highlights

This valve is designed to handle the demands of both residential and commercial settings, providing a steady, reliable water pressure control. The integrated strainer traps debris, ensuring clean functionality and less frequent maintenance.

Product Information

Standard Information

• Brand: Honeywell
• Model Number: DS06-105-DUT-LF

Technical Specifications

• Material: Brass body, fabric reinforced diaphragm
• Pressure Rating: 250 PSI
• End Connection: Female threaded X female threaded
• Dimensions: 8-37/64 inches length x 11-13/16 inches height
• Gauge Tap Size: 1/4 inch threaded
• Temperature Rating: Operating at 140 degrees Fahrenheit, ambient 33 to 140 degrees Fahrenheit
• Downstream Pressure Range: 25 to 90 PSI
• Features: Non-corroding unitized cartridge, built-in strainer
• Applicable Standard: CSA B356, ASSE 1003, IAPMO/UPC, NSF 61
