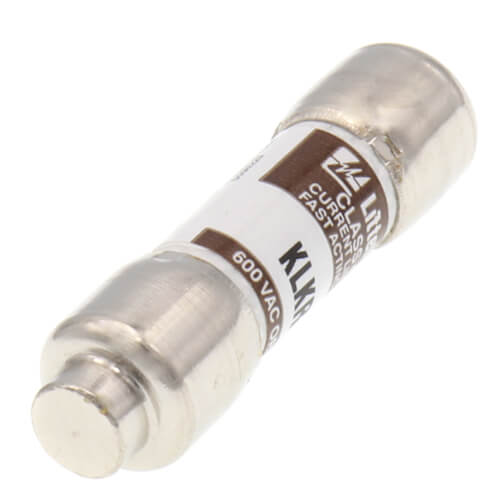

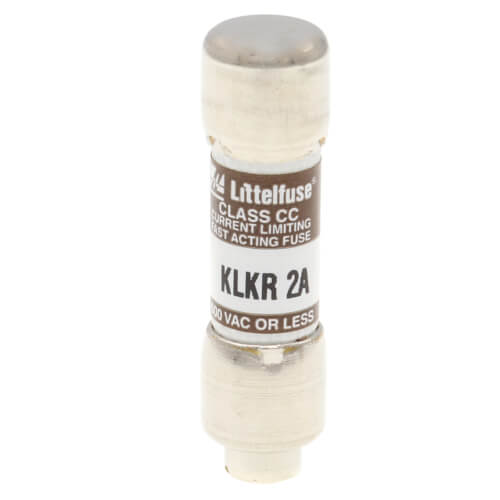

Littelfuse KLKR002 Class CC Fast Acting Fuse 600VAC 300VDC 2 Amp

Product Description

The Littelfuse KLKR002 is a Class CC fast-acting fuse, designed to provide optimal protection in electrical circuits. This fuse is rated for 600VAC and 300VDC with a 2 amp current rating, making it suitable for high-performance applications where space and response time are critical.

• Compact design for easy installation
• Fast response to overcurrents, protecting circuits efficiently
• Highly current-limiting to minimize energy let-through

Product Highlights

The KLKR002 model offers superior protection by integrating advanced features such as rejection to prevent incorrect fuse replacement and a melamine body that enhances durability under high temperatures. It is specifically engineered to reduce the risk of damage caused by short circuits, with a remarkable interrupting rating of 200,000 amperes at 600VAC.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR002
• Class: CC
• Response Time: Fast Acting

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage: 2 Amp
• Interrupt Rating: 200,000 A at 600 VAC
• Body Material: Melamine
• Terminal Type: Ferrule
• Standards: UL Listed, CSA Certified
