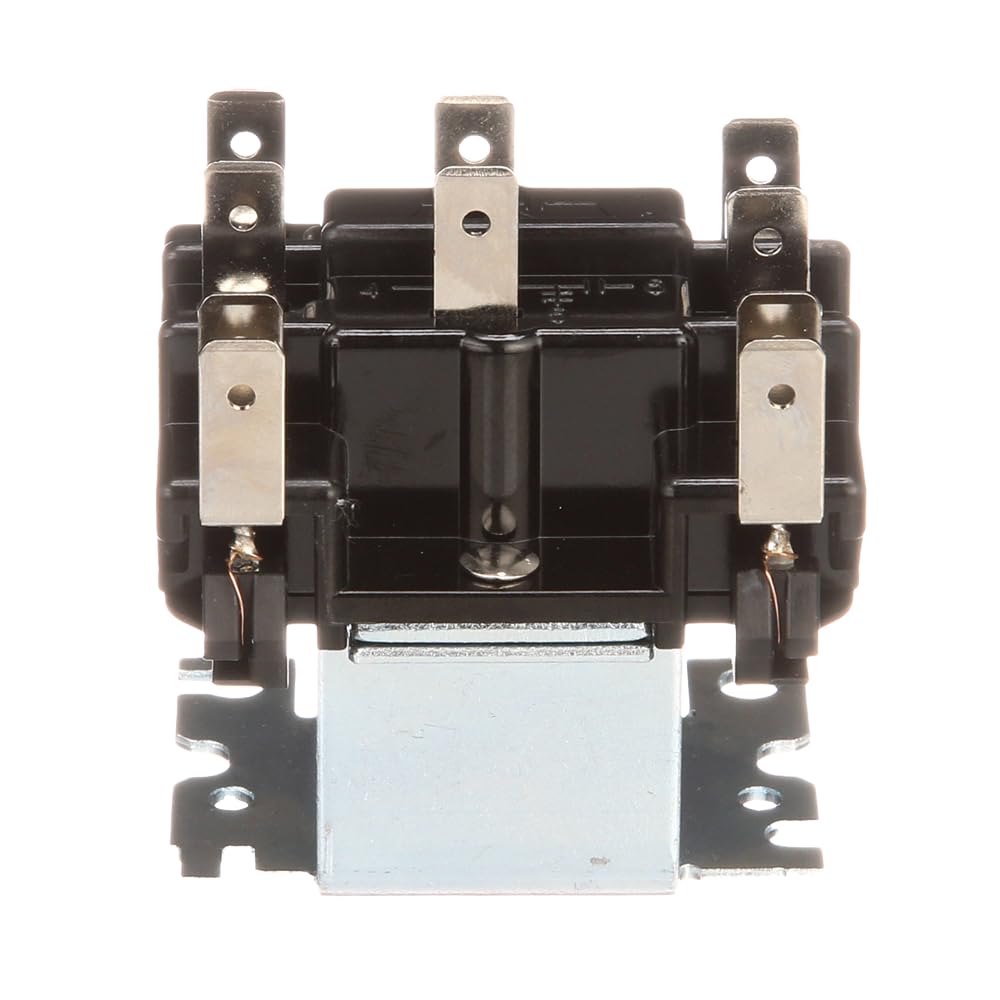

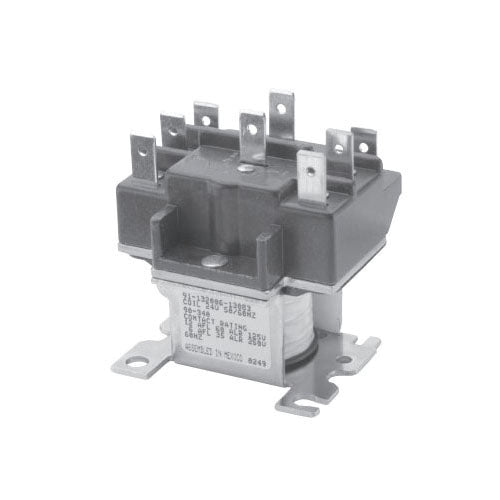

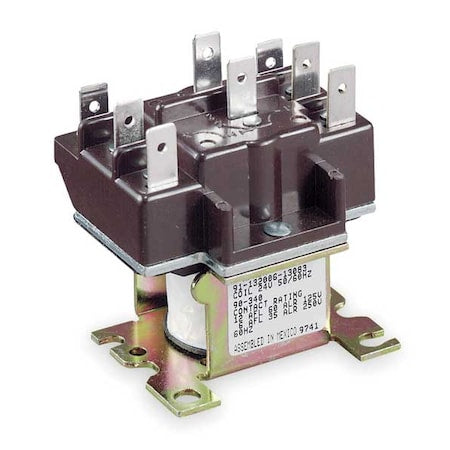

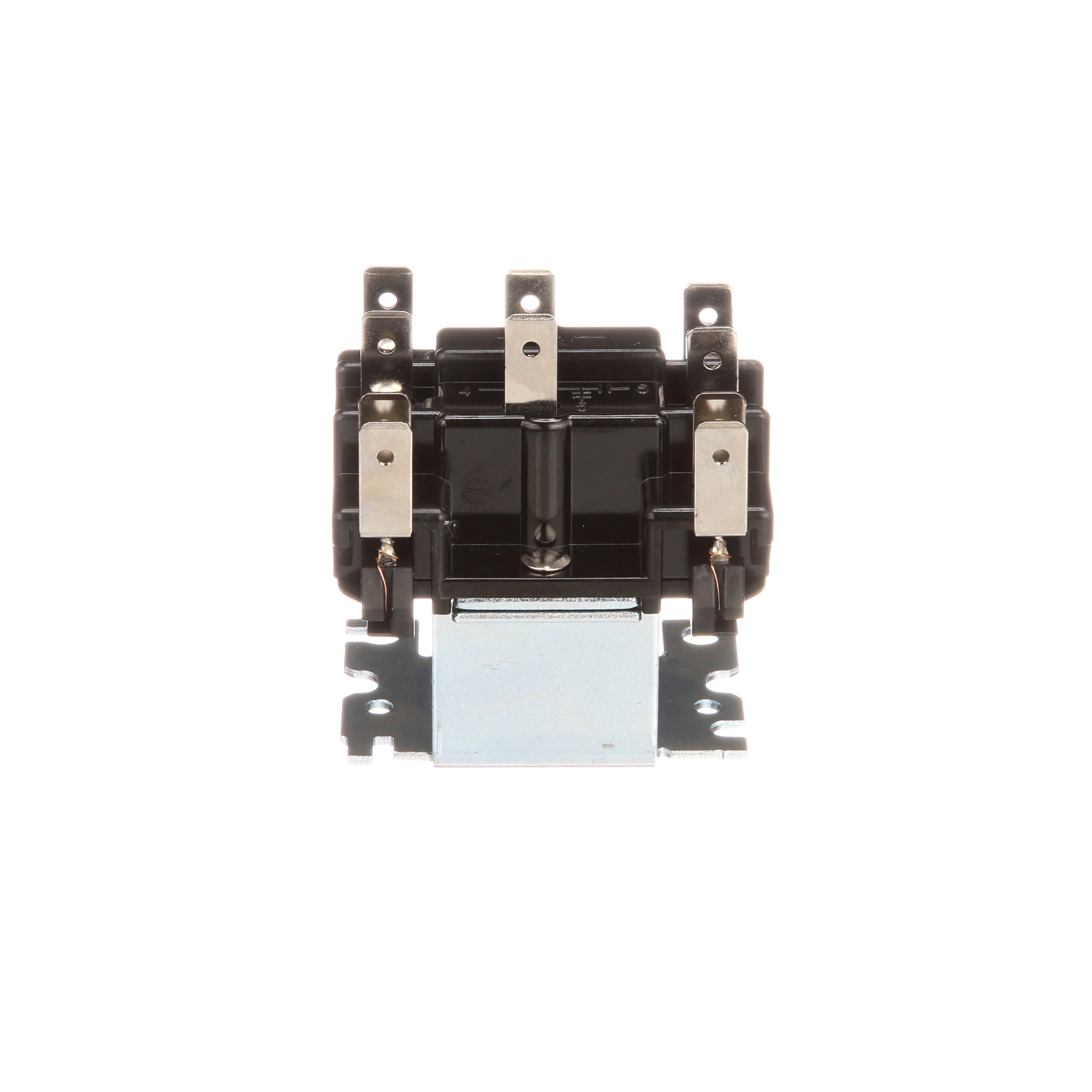

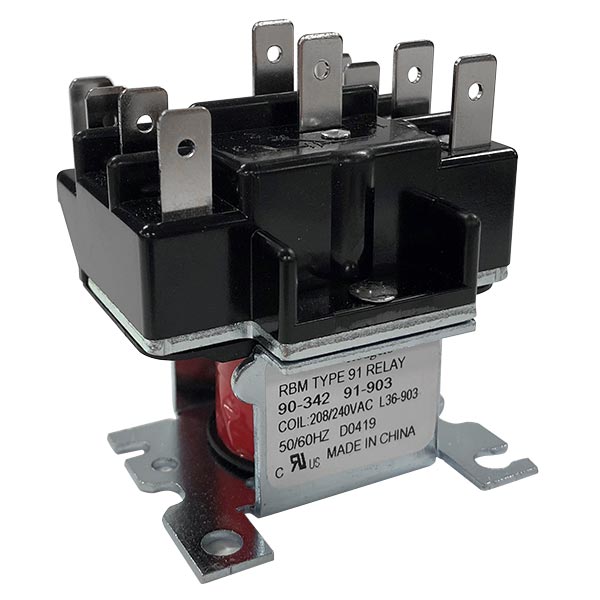

White-Rodgers 90-342 Switching Relay 38 mA DPDT Contact 208/240 VAC Coil

Product Description

The WHITE-RODGERS 90-342 is a switching relay with a 38 mA current rating and DPDT contact configuration. It features a 208/240 VAC coil voltage and quick-connect terminals. This relay is designed for easy installation and is suitable for use in vending machines, appliances, and HVAC applications.

• Easy installation
• DPDT contact form
• Quick-connect terminals

Product Highlights

Switching relay with 208/240 VAC coil voltage, DPDT contact, and quick-connect terminals for easy installation in various applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-342
• Country of Origin: CN

Technical Specifications

• Coil Voltage: 208/240 VAC
• Contact Form: DPDT
• Terminal Type: Quick-Connect
• Contact Rating: 12 FLA/60 LRA at 125 VAC, 6 FLA/35 LRA at 250/277 VAC, 15 A at 277 VAC RES, 1/2HP 125/250 VAC
• Enclosure Type: Semi-Enclosed
• Amperage Rating: 38 mA
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Manufacturer Name: Emerson Electric
• Temperature Rating: -40 to 130 deg F
• Coil Power: 9.5 VA Nominal, 22 VA Inrush
• Application: Vending Machines, Appliances, Heating and Air Conditioning Applications, and General-Purpose Switching
• Mounting Type: Universal
• Coil Resistance: 1600 ohm
• Connection Type: 1/4 in Quick Connect
• Electrical Life: 1000000 cycles
• Maximum Operating Temperature: 130 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• HP: 1/2 hp
• Item: Magnetic Relay
• Type: AC Switching
• Sealing: Semi-Enclosed
• Mounting: Universal
• Standards: CSA File No. LR13360, UL E12139
• Motor Rated: Yes
• Input Voltage: 208/240V AC
• Agency Compliance: UL
• Coil Voltage Type: AC
• Operating Current: 15 A at 277V AC (Resistive Load)
• Power Consumption: 9.5 VA
• Relay Mounting Style: Surface
• Electrical Connection: Quick-Connect
• Full Load Amps @ 277V: 6
• Resistive Amps @ 277V: 15
• Full Load Amps @ 120VAC: 12
• Full Load Amps @ 240VAC: 6
• Environmental Protection: Enclosed
• Locked Rotor Amps @ 120V: 60
• Locked Rotor Amps @ 240V: 35
• Electrical Connection Type: Tab
• Electrical Operating Durability: 100,000
• Mechanical Operating Durability: 1,000,000
• Compatible with Grainger Part Number: 1N182, 2E852, 3TZ56
• Compatible with Manufacturer Model Number: 90-112, 90-113, 90-118E, 90-119
• Relay Type: Two Pole Double Throw Semi-Enclosed
• Contacts: DPDT
• Full Load Inductive: 12.0a (125 vac), 6.0a (240/277 vac)
• Locked Rotor: 60.0a (125 vac), 35.0a (240/277 vac)
• Resistive: 15.0a (277 vac)
• Coil Current: 38 ma
• Nominal VA: 9.5 va
• Inrush VA (Max): 22 va
• Mfg Standards/Approvals: CSA LR13360|UL E12139
