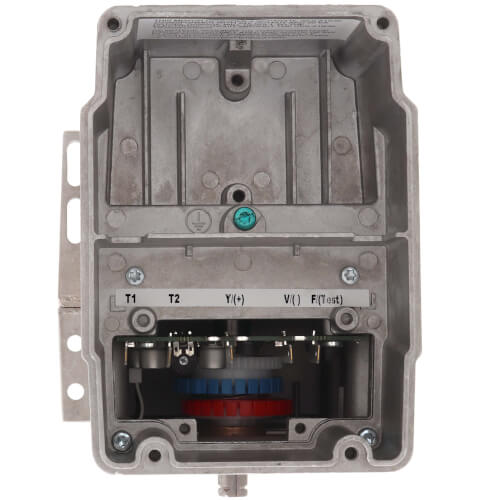

Honeywell M7294A1010 Non-Spring Return Foot Mounted Actuator 24V 300 lb-in

Product Description

The Honeywell M7294A1010 Non-Spring Return Foot Mounted Actuator is engineered for precise valve control within industrial systems, operating on a 2-10VDC range with a torque output of 300 lb-in. Known for its robust and reliable performance, this actuator does not require a spring return, maintaining its position through continuous power supply.

• Direct compatibility with 24V systems.
• Designed for both normally open and normally closed applications.
• Efficient in environments with temperatures ranging from -40 to 150 degrees Fahrenheit.

Product Highlights

This model provides exceptional operational reliability and is conducive to a variety of industrial environments. The dual-ended motor shaft and adjustable stroke capabilities enhance its versatility, making it an excellent choice for comprehensive valve and damper control.

Product Information

Standard Information

• Control Signal: Modulating, 2-10 Vdc
• Power Consumption: 15 VA

Technical Specifications

• Motor Type: Non-Spring Return
• Mounting Type: Foot-mounted
• Dimension: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
• Torque: 300 lb-in
• Frequency: 50 Hz, 60 Hz
• Fail Safe: No
• Weight: 6.02 lbs
