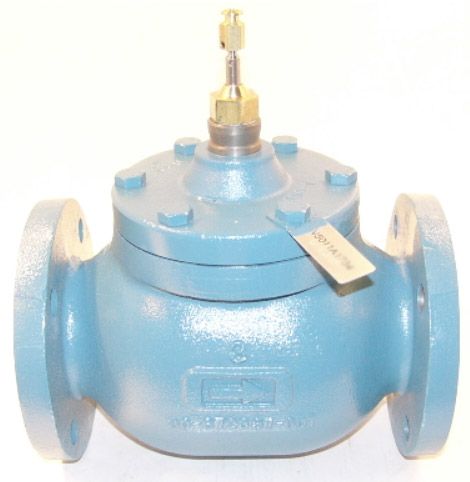

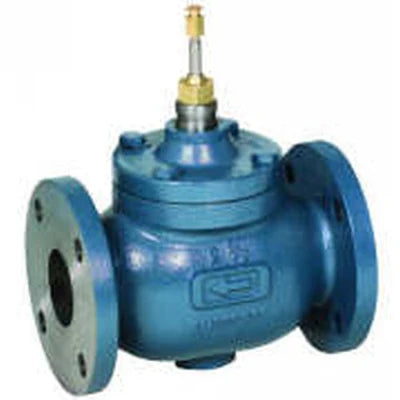

Honeywell V5011A1734 2-1/2 Inch Two-Way Flanged Globe Valve 63 Cv

Product Description

The Honeywell V5011A1734 is a 2-1/2 inch two-way flanged globe valve. This valve features a 63 Cv and is suitable for controlling hot water, chilled water, and glycol solutions. It is constructed for long-lasting performance with a cast iron body and stainless steel stem.

• 2-1/2 inch flanged globe valve
• 63 Cv flow capacity
• Durable cast iron body

Product Highlights

This valve is designed for reliable performance in HVAC systems. It can manage hot water, chilled water, and glycol solutions for a variety of applications.

Product Information

Standard Information

• Item Number: V5011A1734
• Brand: Honeywell

Technical Specifications

• Valve Size: 2-1/2 inches
• Valve Connection: Flanged
• Body Material: Cast Iron
• Max Pressure: 125 psi WOG
• Flow Characteristic: Equal Percentage
• Controlled Medium: Hot Water, Chilled Water, 50% Glycol, Low Pressure Steam
• Stem Material: Stainless Steel
• Temperature Range: 40 F to 250 F
• Weight: 44 lbs
