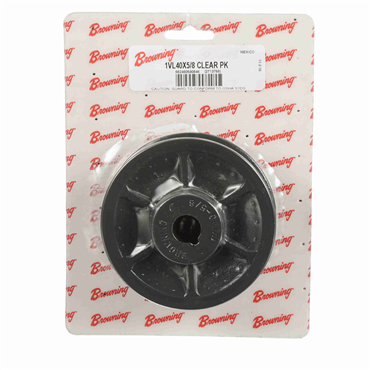

Browning 2713758 Finished Bore Cast Iron Variable Pitch Sheave

Product Description

The Browning 2713758 is a finished bore cast iron variable pitch sheave. This versatile sheave is used for belt drives and features a variable pitch for adjusting speed ratios. It is suitable for various applications within power transmission.

• Widely used in industrial applications
• Compatible with various belt types
• Offers flexibility in speed adjustments

Product Highlights

This sheave provides the flexibility needed in belt drive systems. With various pitch diameters available, it is designed for heavy-duty applications while maintaining reliability.

Product Information

Standard Information

• Brand: Browning
• MPN: 2713758

Technical Specifications

• Turns Open (B or 5L) (For Max PD): 1
• Pitch Diameter (A or 4L) (Min): 2.6
• Turns Open (B or 5L) (For Min PD): 6
• Pitch Diameter (A or 4L) (Max): 3.6
• Type of Bore: Finished
• Pitch Diameter (B or 5L) (Min): 2.8
• Pitch Diameter (3L) (Min): 2.3
• Turns Open (3L) (For Min PD): 4
• Number of Grooves: 1
• Material: Cast Iron
• Belt Section: 3L, 4L or A, 5L or B
• Turns Open (A or 4L) (For Min PD): 5
• Outside Diameter (in): 3.75
• Pitch Diameter (B or 5L) (Max): 3.8
• Pitch Diameter (3L) (Max): 3.1
• Weight: 1.665 LB
• EAN or UPC: 662460590646
