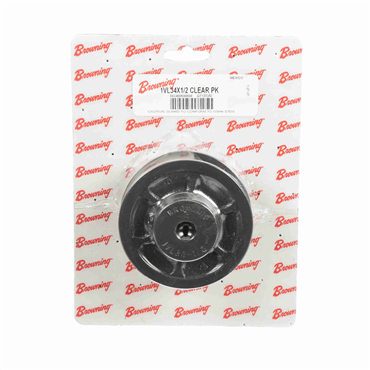

Browning 2713725 Finished Bore Cast Iron Variable Pitch Sheave

Product Description

The Browning 2713725 is a finished bore cast iron variable pitch sheave designed for optimal performance in variable speed applications. This sheave is part of the extensive range of Browning products available in the market.

• Wide selection of variable speed sheaves; one and two groove options available.
• Suitable for covering up to twenty-five horsepower.
• Packaged for easy display with Clear Pak.

Product Highlights

The Browning 2713725 sheave provides versatile speed control for various applications in motors.

Product Information

Standard Information

• Brand: Browning
• MPN: 2713725

Technical Specifications

• Material: Cast Iron
• Weight: 1.365 lb
• Outside Diameter: 3.15 inches
• Number of Grooves: 1
• Type of Bore: Finished
• Pitch Diameter (Min): 2.5 inches (B or 5L)
• Pitch Diameter (Max): 3.3 inches (B or 5L)
• Turns Open (Min PD): 5 (B or 5L)
• Turns Open (Max PD): 1 (B or 5L)
• Belt Section: 3L, 4L or A, 5L or B
• EAN or UPC: 662460590608
