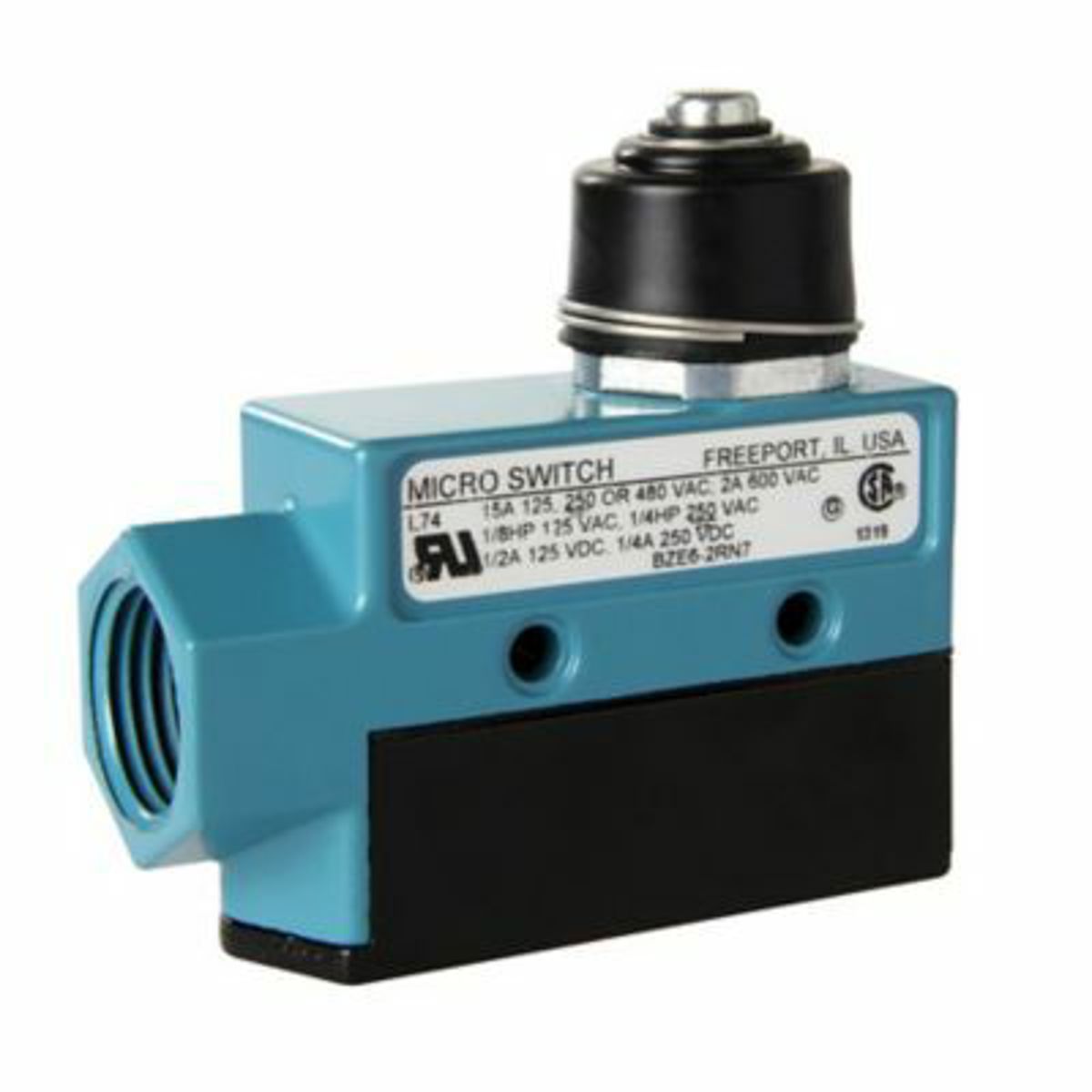

Honeywell BZE6-2RN Enclosed Limit Switch 600 VAC/250 VDC

Product Description

The Honeywell BZE6-2RN is a robust enclosed limit switch designed for reliable operation in industrial environments. This medium-duty switch operates with a voltage range of 600 VAC to 250 VDC and supports up to 22 amps. Ideal for applications requiring precise actuation, it features a top plunger actuator and a SPDT snap action mechanism.

• SPDT configuration with one normally open and one normally closed contact
• Enclosed design ensures durability and environmental protection
• Snap-action mechanism for precise and consistent switching

Product Highlights

Constructed from die-cast zinc with an epoxy coating, the BZE6-2RN withstands rigorous conditions and offers an extended service life with up to five million operating cycles. It is equipped with a 1/2-14 NPT conduit connection and comes in a flanged mounting style, which facilitates easy installation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: BZE6-2RN

Technical Specifications

• Actuator Type: Top Plunger
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 22 A
• Contact Configuration: 1NO-1NC/DPDT
• Enclosure Rating: NEMA 1/3/4, IP66
• Material: Die Cast Zinc
• Finish: Epoxy Coated
• Operating Temperature Range: -32 to 71 degrees Celsius
