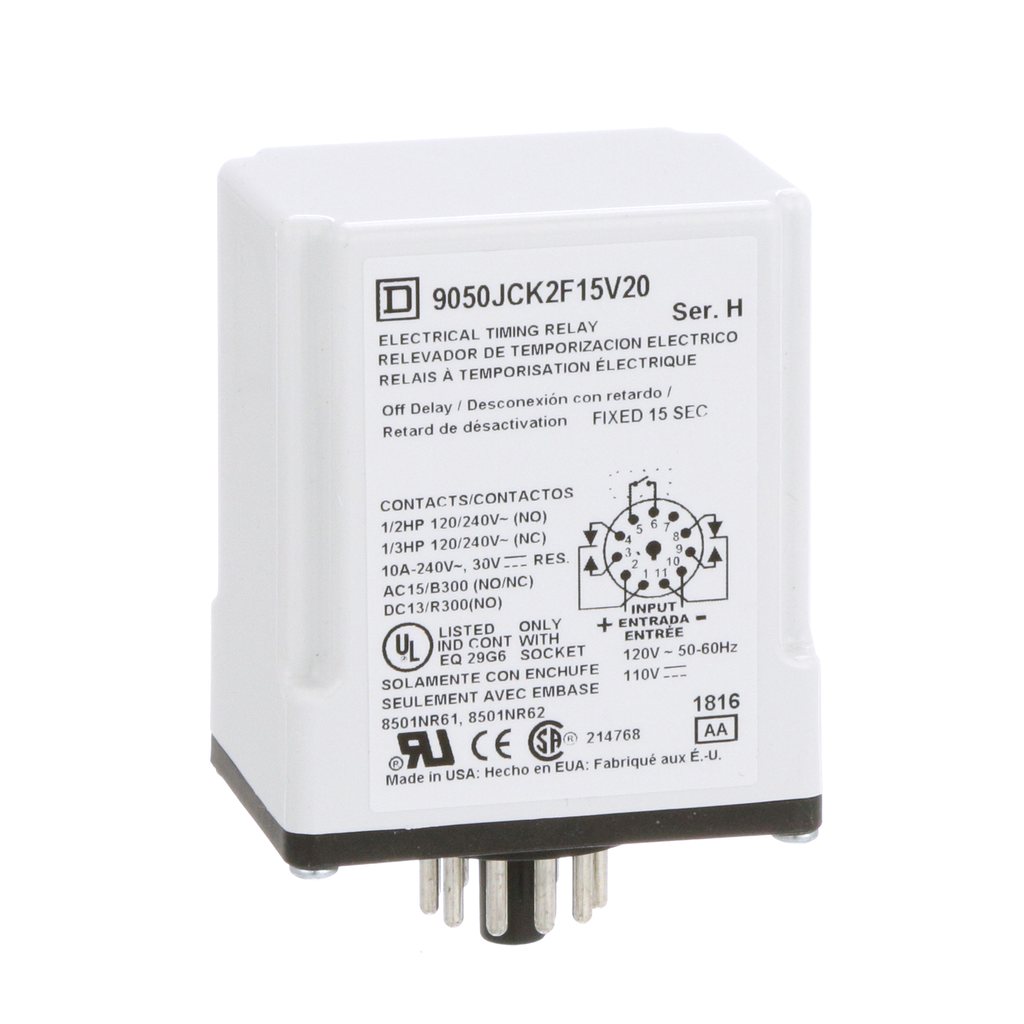

Square D 9050JCK2F15V20 Timing Relay 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount

Product Description

Experience reliable and accurate timing control with the Square D 9050JCK2F15V20 Timing Relay. This DPDT plug-in socket mount relay is designed for seamless integration into various control systems with a 120 VAC and 110 VDC operation.

• Fixed 25-second off-delay timing for precise operations.
• Compatible with 8501NR61 or 8501NR62 relay sockets for easy installation.
• Robust construction rated for both resistive and inductive loads up to 10 amperes.

Product Highlights

The Square D 9050JCK2F15V20 Timing Relay offers reliable performance and is ideal for applications requiring specific timing configurations. It features a non-adjustable knob and can be mounted on 35mm DIN tracks or directly to panels. Its contacts are crafted for heavy-duty operations, making it a long-lasting and dependable choice for industrial settings.

Product Information

Standard Information

• Brand: Square D
• MPN: 9050JCK2F15V20
• Type: Timing Relay
• Certifications: UL Listed, UL Recognized, CSA Certified

Technical Specifications

• Coil Voltage: 120 VAC, 110 VDC
• Contact Rating: 10 Amp at 240 VAC, 30 VDC
• Contact Configuration: 2 NO + 2 NC
• Mounting Type: Socket Mount
• Operating Temperature: -18 to 150 degrees Fahrenheit
