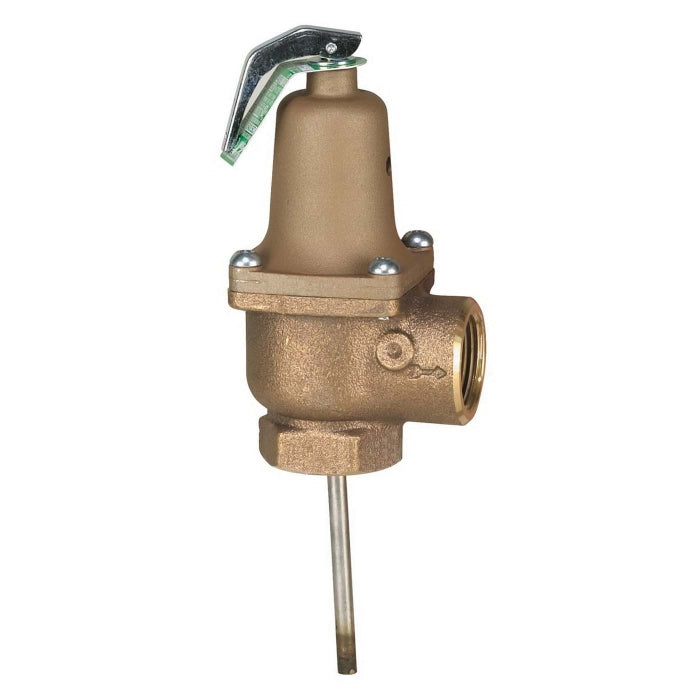

Watts 0256661 140S3 Bronze Automatic Re-Seating Temperature and Pressure Relief Valve 1 in FNPT 150 psi 210 deg F

Product Description

The Watts 0256661 140S3 Bronze Automatic Re-Seating Temperature and Pressure Relief Valve is essential for maintaining the safety of your water heater systems. It provides automatic protection against excessive pressure and temperature.

• Temperature and pressure relief valve
• 3 in thermostat probe length
• Tamper-resistant bonnet screws

Product Highlights

Ideal for commercial water heater applications, the Watts 0256661 combines superior thermal and pressure relief capabilities.

Product Information

Standard Information

• Brand: Watts
• MPN: 0256661
• UPC: 098268012385
• Category: Valves & Regulators > Safety Relief Valves > T&P Relief Valves

Technical Specifications

• Capacity: 570000 Btu/hr CSA, 3085000 Btu/hr ASME
• Connection Size: 1 in
• Connection Type: FNPT
• Dimension: 5-5/8 in H x 2-5/8 in W
• Item Name: Temperature and Pressure Relief Valve
• Material: Bronze
• Operator Type: Test Lever Handle
• Pressure Rating: 150 psi
• Series: 140S3
• Temperature Rating: 210 deg F
• Type: Automatic Re-Seating
• Standards/Certifications: ASME section IV, ANSI Z21.22, MIL-V-136-12D type I, C/US CSA, NB, HV certified
• Applications: For commercial water heater applications
