Johnson Controls VG1245CP+923GGA VG1000 Series Ball Valve 1 Inch NPT Two-Way Stainless Steel with VA9203 Proportional Actuator

Product Description

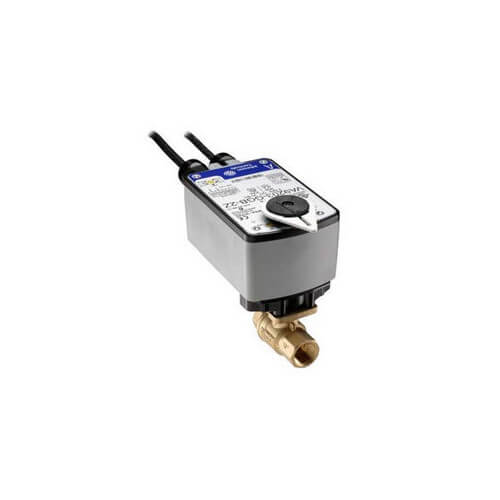

The Johnson Controls VG1245CP+923GGA consists of a 1 inch NPT two-way ball valve from the VG1000 series coupled with the VA9203 proportional electric actuator. This assembly is primarily intended to regulate hot or chilled water and low-pressure steam in HVAC systems.

• Designed for on/off, floating, or proportional control
• Comes with factory or field mount configurations for versatility
• Optimal for sizes between 1/2 inch and 2 inches (DN15 to DN50)

Product Highlights

This valve system is characterized by its robust forged brass body and stainless steel trim, ensuring a high static pressure rating of 580 psig. The included VA9203 actuator allows for precise control adjustments, aimed at meeting the demands of modern HVAC systems.

Technical Specifications

• Body Material: Forged Brass
• Trim: Stainless Steel
• Pressure Rating: 580 psig static
• Connection Type: NPT Threaded
• Control Type: Proportional, On/Off, Floating
• Actuator Model: VA9203 Series
• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Position Feedback: 0(2) to 10 VDC
• Electrical Connection: 120 inches 19 AWG Plenum Cable
