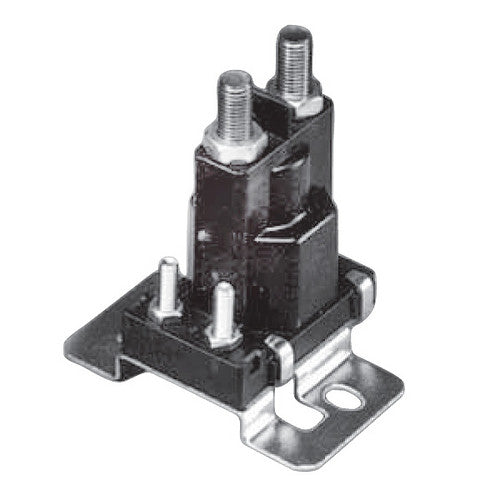

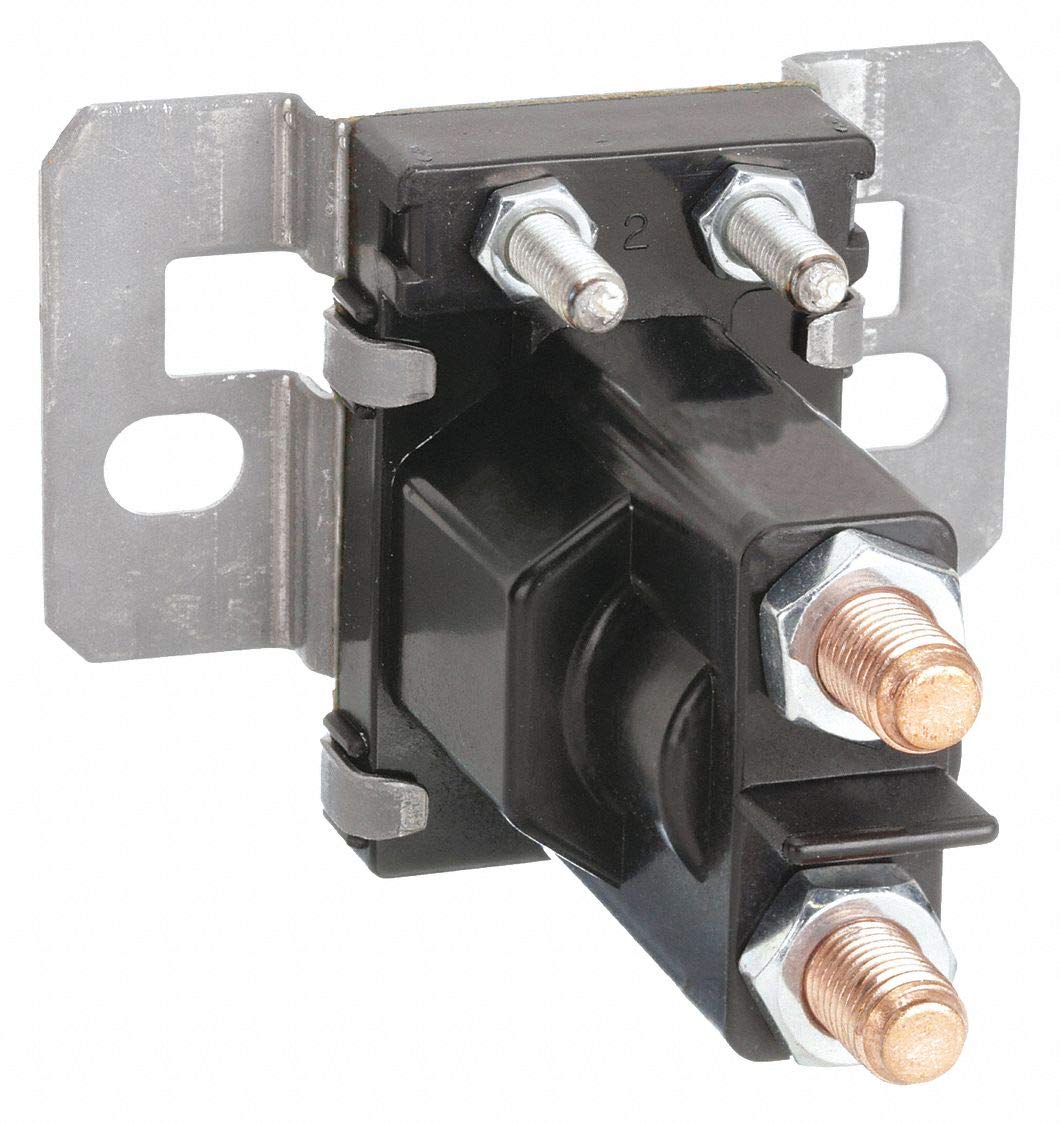

White-Rodgers 120-105711 DC Power Solenoid 12V 100 Amps

Product Description

The White-Rodgers 120-105711 DC Power Solenoid is engineered for reliable operation in industrial settings. This solenoid operates on 12V DC and is designed to handle 100 amps of continuous current, making it well-suited for a variety of electrical applications.

• SPNO contact configuration ensures efficient operation
• Isolated coil with 16 ohms resistance for safety and durability
• Continuous duty design for sustained performance

Product Highlights

This solenoid is optimal for use in industrial automation, control systems, and power distribution, thanks to its robust construction and high electrical characteristics.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 120-105711

Technical Specifications

• Operating Voltage: 12 V DC
• Contact Configuration: SPNO
• Coil Resistance: 16 ohms
• Continuous Duty: Yes
• Contact Rating: 100 Amps continuous, 400 Amps inrush
• Temperature Range: -20°F to 155°F
• Dimensions: Length 3.7 inches, Width 3.7 inches, Height 3.1 inches
