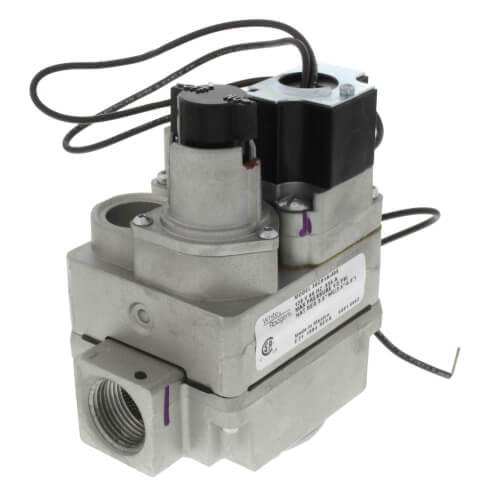

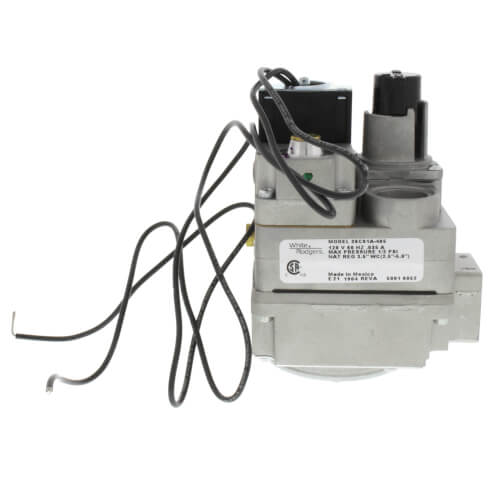

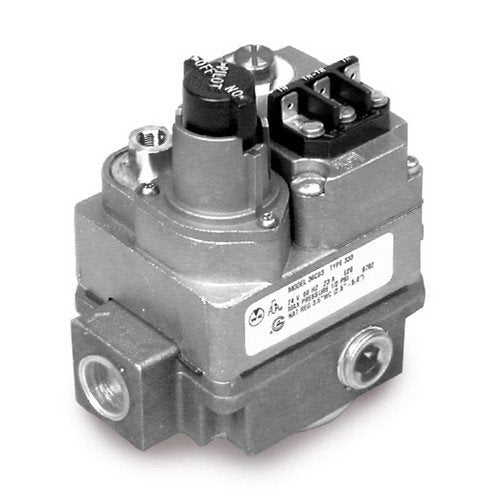

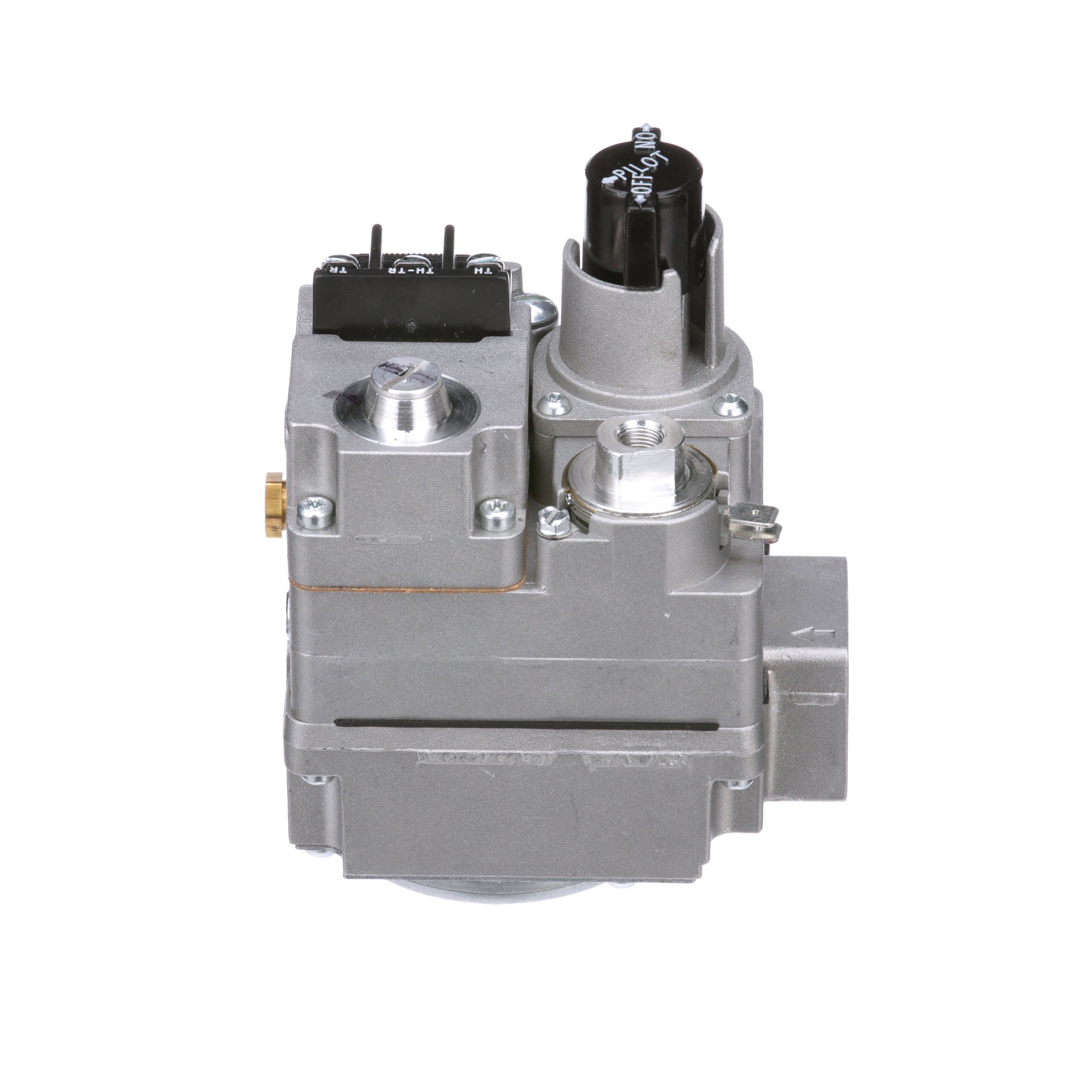

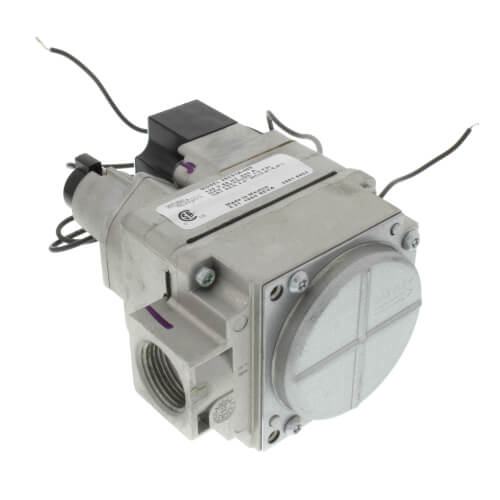

White-Rodgers 36C01A-405 Gas Burner Control Snap Open

Product Description

The WHITE-RODGERS 36C01A-405 gas burner control features a snap open design. This 1-stage, standing pilot gas valve has a 3/4 Inch x 3/4 Inch nominal size and female threaded end connections. It supports both natural and liquid propane gas and includes a liquid propane conversion kit and reducer bushing kit.

• Convertible for natural or liquid propane gas
• Adjustable regulator
• Suitable for intermittent ignition systems

Product Highlights

The 36C01A-405 gas valve provides reliable gas flow control for heating systems, furnaces, and other industrial processes.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 36C01A-405
• Country of Origin: United States

Technical Specifications

• Item Model Number: 36C01A-405
• Part Number: 36C01A-405
• Batteries Required?: No
• Type: 1-Stage, Standing Pilot, Snap/Fast Open, Straight-Through
• Nominal Size: 3/4 in
• End Connection: Female Threaded x Female Threaded
• Input Supply Rating: 120 Volt AC 60 Hertz 0.23 Amp
• Temperature Rating: -40 to 175 deg F
• Pressure Rating: 0.5 psi
• Inclusions Features: Convertible Natural/Liquid Propane, Liquid Propane Conversion Kit, Reducer Bushing Kit
• Application: Intermittent Ignition System
• Applicable Standard: CSA (Canada and US)
• Fuel Type: Natural/Liquid Propane Gas
• Capacity: 280000 BTU/Hour (Natural Gas), 453600 BTU/Hour (Liquid Propane Gas)
• Regulator Setting: 3.5 Inch
• Regulator Adjustment Range: 2.5 to 5 Inch (Natural Gas), 4.2 to 11 Inch (Liquid Propane Gas)
• Manufacturer Name: White-Rodgers
• UPC: 786710005541
• UNSPSC Code: 40141609
• Series: 36C
• Voltage: 120 VAC
• Pilot Type: Plugged
• Includes: F92-0866 LP Kit, Reducer Bushings
• Line Interrupter: No
• Side Taps: No
• Ignition Type: Standing Pilot
• Nominal Capacity: 50000 to 400000 Btu/hr
• Coil Voltage: 120 VAC
• Electrical Connections: 1/8 in NPT Pressure Tap
• Gas Type: Liquid Propane/Natural Gas
• Material: Metal
• Specification Met: CSA, ULC
• Manufacturer: White Rodgers
• Item Number: 36C01A-405
• Brand: White-Rodgers
