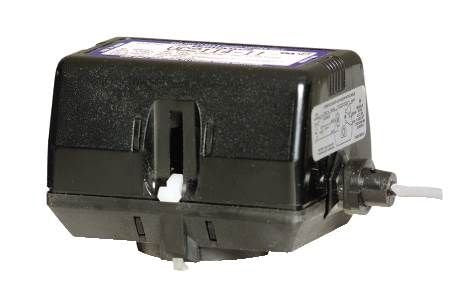

Honeywell VC4011ZZ11 Two Position Actuator SPDT

Product Description

The Honeywell VC4011ZZ11 Two Position Actuator, SPDT, is designed for a variety of HVAC applications. This actuator is ideal for controlling central heating and cooling systems. It features a 0.4 inch stroke, a driving power of 6 VA, and operates with a two-position SPST signal.

• Use with two-way or three-way valves
• Minimal power consumption
• Quick and easy replacement

Product Highlights

The Honeywell VC4011ZZ11 actuator can be controlled by either low or line voltage SPST or SPDT controllers such as a room thermostat. It is compatible with central heating, cooling systems, fan coil systems, radiators, and convectors.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VC4011ZZ11

Technical Specifications

• Voltage: 120 Volts
• Connector Type: Screw
• Current Rating: 120 Amps
• Number of Positions: 2
• Type: Line-Volt
• Series: VC4
• Stroke: 0.4 inch
• Timing: 6 sec
• Signal Type: 2-Position, SPST
• Power Supply: 100 - 130 V, 50/60 Hz
• Body Material: Plastic
• Mounting Type: Direct Coupled
• Pressure Rating: 60 psi
• Power Consumption: 6 VA Driving
• Temperature Rating: 32 - 150 deg F
• Electrical Connection: 39 inch cable
• Suitable For Use With: VC Series Valve
