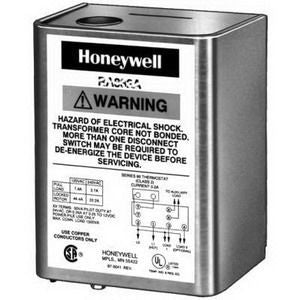

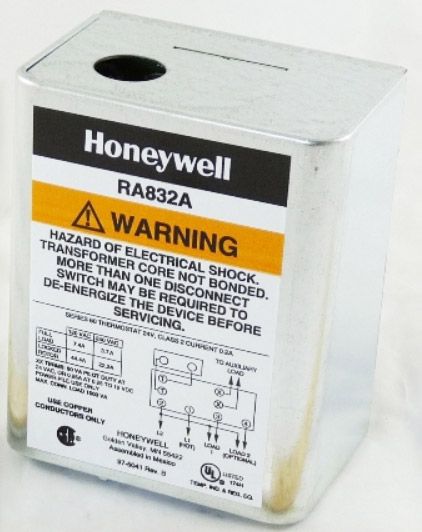

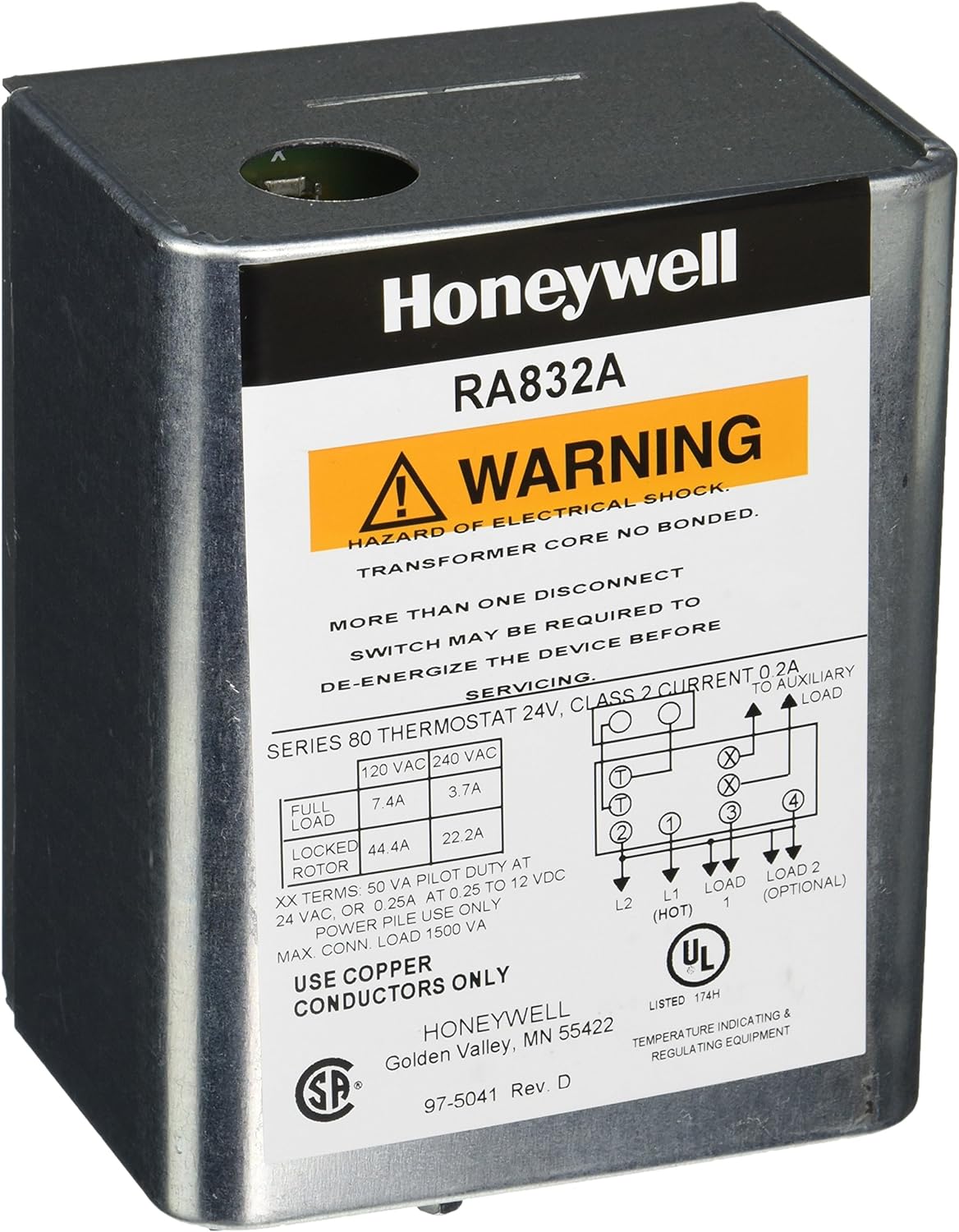

Honeywell RA832A1066 Hydronic Switching Relay 24 Watts

Product Description

The Honeywell RA832A1066 is a hydronic switching relay designed to manage the operation of HVAC systems by providing intermediate switching of line voltage devices from a low voltage controller. It features an integrated 24-volt transformer for enhanced functionality and reliability.

• Optimized for hydronic systems
• Supports DPST switching of line voltage loads
• Automatic operation mode with a maximum switching voltage of 24 volts

Product Highlights

This relay is designed with robust features including a two-wire, 24-volt control circuit and switching capabilities for two line voltage loads sharing a common power source. The integral transformer supplies low-voltage power to the control circuit, promoting efficient and secure operations.

Product Information

Standard Information

• Brand: Honeywell
• Mounting Type: Conduit/Unit
• Operation: Automatic

Technical Specifications

• Coil Voltage: 24 Volts
• Max. Ambient Temperature: 115°F for 60 Hz
• Control Circuit: 2-wire, 24 Volt
• Dimensions (H x W x D): 5-1/2 inches x 4-1/4 inches x 2-5/16 inches
