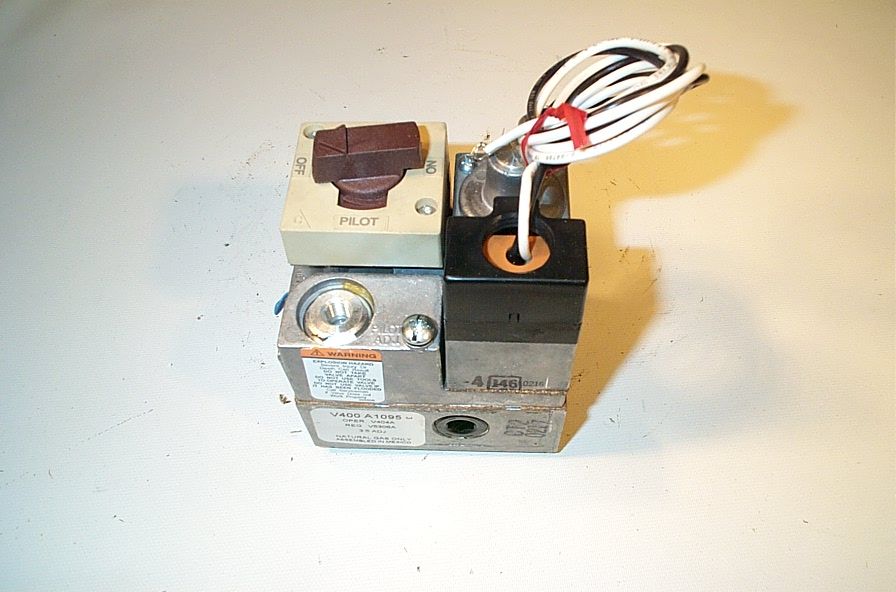

Honeywell V400A1095 3/4 Gas Valve

Product Description

The Honeywell V400A1095 is a standard opening gas valve designed for use in gas fired appliances. With a size of three-fourths inches NPT connections and half inch side outlets, this valve includes thirty-nine lead wires and operates effectively with a thirty millivolt thermocouple. The valve's operating temperature range is between thirty-two to one hundred seventy-five degrees Fahrenheit, and it can handle a maximum pressure of one-half psi.

• Standard opening gas valve suitable for gas appliances
• Features a brass body and straight piping configuration
• Comes with a pilot flow adjustment screw for easy servicing

Product Highlights

Designed for reliability with accessible adjustments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V400A1095

Technical Specifications

• Model: V400A
• Valve Size: 3/4 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Gas
• Max Pressure: 1/2 psi WOG
• Weight: 3.26 lbs
