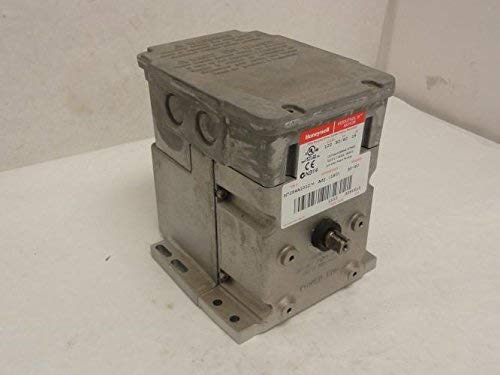

Honeywell M7284A1012 120V Modulating Actuator With 60 Sec. Timing 4-20 MA 160 Deg Stroke

Product Description

The Honeywell M7284A1012 Modutrol IV Motor is a powerful and reliable electric motor designed for precise control applications in industrial and HVAC systems. Operating on a 120V power supply, this motor offers a 150 lb-in torque capacity and non-spring return functionality for robust performance.

• 120V operation provides compatibility with a wide range of control systems.
• 4-20 mA control signal ensures precise modulation and fine adjustments.
• 60-second timing function allows for gradual valve opening and closing, preventing sudden pressure surges.

Product Highlights

This Honeywell motor is designed to control dampers and valves with high accuracy. It features a stroke range of 90 to 160 degrees, factory set at 160 degrees, and a dual-ended square shaft for versatile installation options. The integral junction box provides NEMA 3 weather protection, making it suitable for various environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M7284A1012

Technical Specifications

• Torque: 150 lb-in
• Voltage: 120V
• Control Signal: 4-20 mA
• Timing: 30-60 seconds
• Stroke: 90 to 160 degrees
• Mounting: Foot-mounted
• Weight: 7.01 lbs
• Temperature Range: -40 to 150 degrees Fahrenheit
