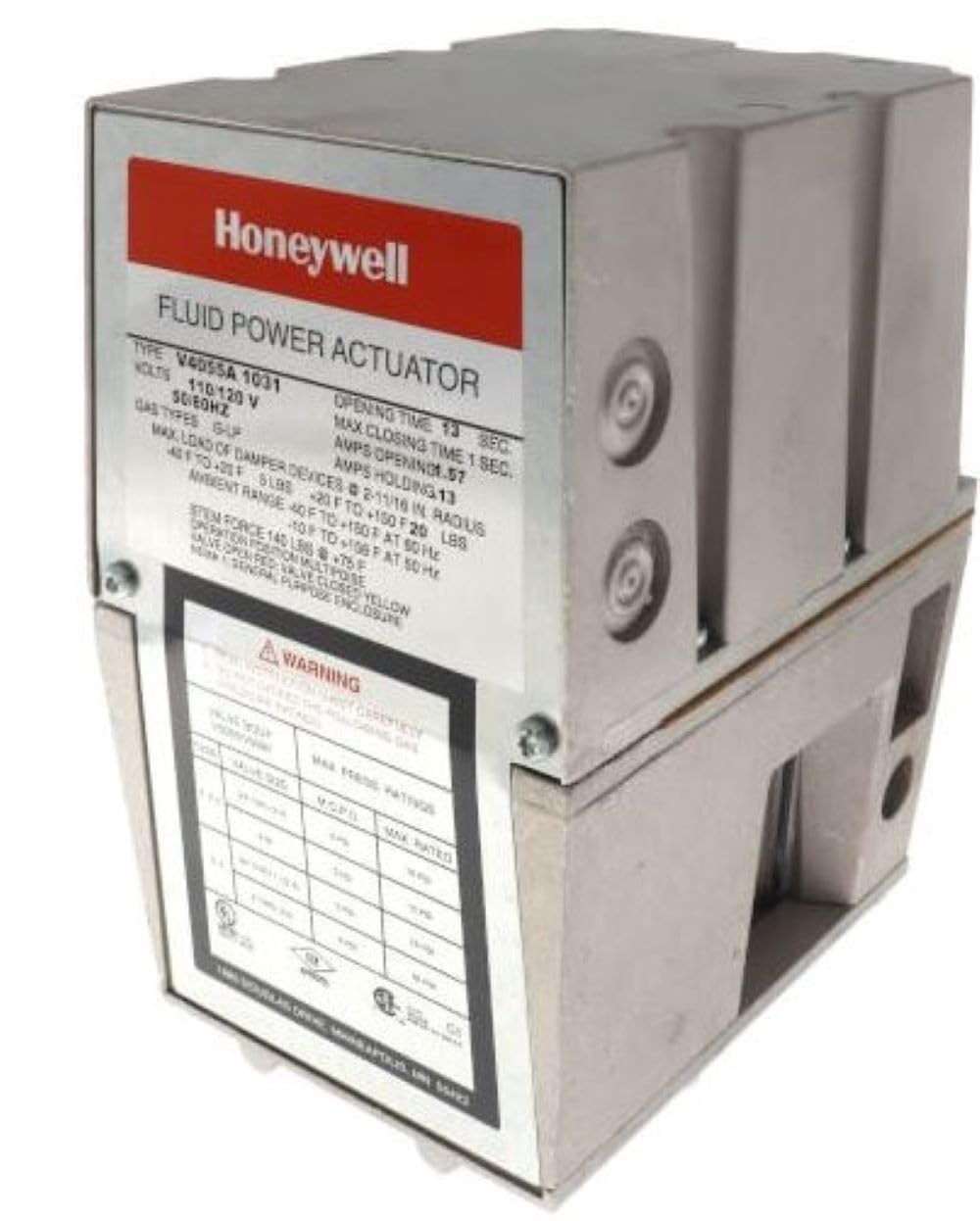

Honeywell V4055A1031 Fluid Power Gas Valve Actuator On-Off 120 VAC 60 Hz

Product Description

The Honeywell V4055A1031 is a fluid power gas valve actuator designed for use in combination with V5055 or V5097 gas valves to control gas supply to commercial and industrial burners. It operates on an on-off mechanism with a 120 VAC power supply and 60 Hz frequency.

• Low pressure ON-OFF actuator
• One-second maximum closing time
• Continuous valve position display with indicators

Product Highlights

The Honeywell V4055A1031 ensures smooth light off, rapid closing time, and clear visual indication of valve status. It mounts directly to the valve bonnet using three setscrews for reliable and stable installation.

Product Information

Standard Information

• Brand: Honeywell
• Model: V4055A

Technical Specifications

• MPN: V4055A1031
• Electrical Rating: 120 VAC
• Power: 60 Hz
• Opening Time: 13 seconds
• Weight: 13.85 pounds
• Max Pressure: 5 PSI
• Temperature Range: -10°F to 158°F
• Dimensions: 7 x 5 x 9 inches
