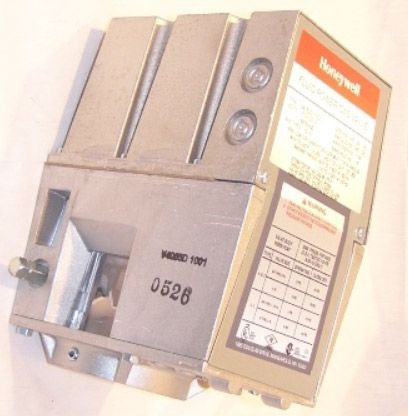

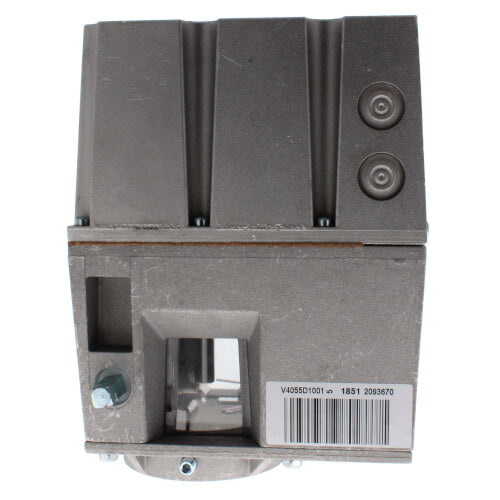

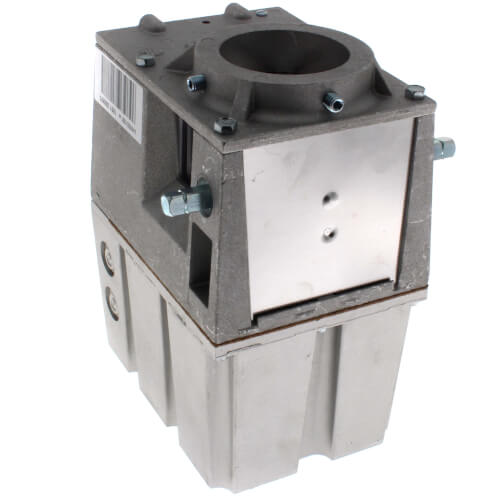

Honeywell V4055D1001 Fluid Power Gas Valve Actuator 5 Psi Max 120 Vac 60 Hz 26 Sec Opening

Product Description

The Honeywell V4055D1001 Fluid Power Gas Valve Actuator is designed for use with V5055 or V5097 Gas Valves to efficiently control gas supply to commercial and industrial burners. This 120-volt, on/off actuator ensures a precise 26-second opening time at 60 Hz and delivers reliable performance under 5 psi maximum operating pressure.

• Smooth ignition with a quick, one-second maximum closing time.

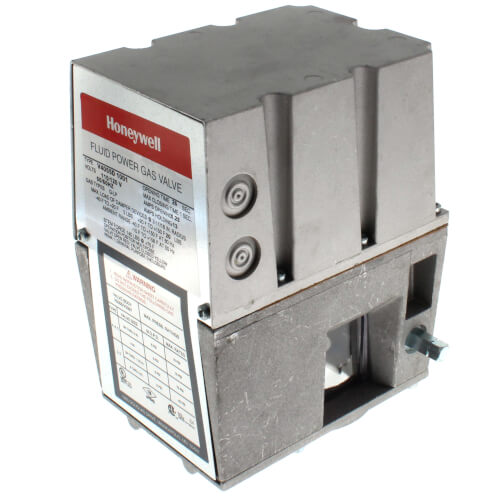

• Continuous display of valve position through color indicators; red when open, yellow when closed.

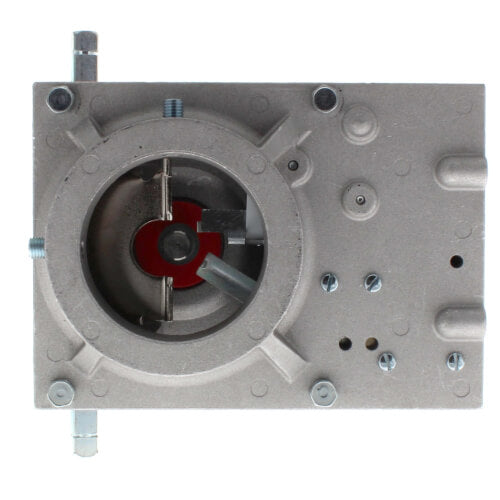

• Flexible mounting directly to valve bonnet via three setscrews permits installation in any position.

Product Highlights

Optimized for low-pressure operations, the Honeywell V4055D1001 provides essential safety shutoff service when paired with compatible gas valves. Its durable design includes a damper shaft and proof-of-closure switch, enhancing operational integrity.

Product Information

Standard Specifications

• Brand: Honeywell
• Model: V4055D
• MPN: V4055D1001
• Product Type: Actuator
• Product Line: Industrial Gas Valves

Technical Specifications

• Operating Voltage: 120V AC
• Frequency: 60 Hz
• Temperature Range: -40°F to 150°F
• Maximum Operating Pressure: 5 psi
• Weight: 13.725 lbs
• Dimensions: Shipping Depth 10.45 inches, Width 8.4 inches, Height 8.25 inches
