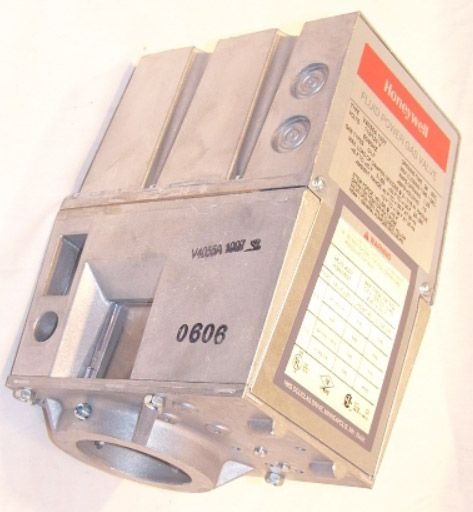

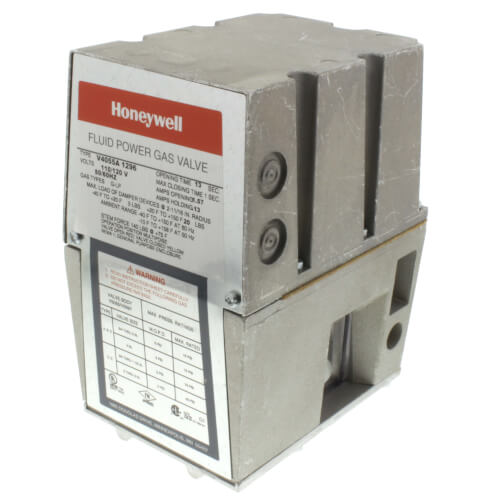

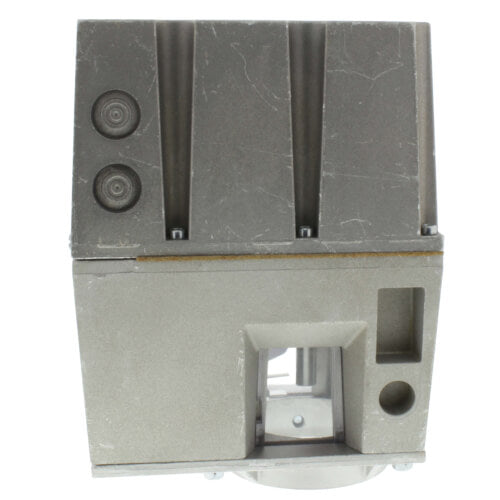

Honeywell V4055A1296 On-Off Fluid Power Gas Valve Actuator 120v 13 sec

Product Description

The Honeywell V4055A1296 On-Off Fluid Power Gas Valve Actuator operates using 120 volts and features a quick 13-second opening time. It is engineered for precise control in industrial applications and comes equipped with an auxiliary switch for additional functionality.

• Quick 13-second opening time
• Auxiliary switch included
• Designed for industrial use

Product Highlights

This gas valve actuator from Honeywell provides reliable performance and quick response, making it suitable for critical control operations in various industrial settings. Its auxiliary switch signals the completion of the stroke or other events, enhancing its versatility and functionality.

Product Information

Standard Information

• MPN: V4055A1296
• Brand: Honeywell

Technical Specifications

• Voltage Input: 120 volts
• Operating Temperature Range: -20 to 80 degrees Celsius
• Stroke Time: 13 seconds
• Electrical Connection: 0.75 NPT
• Fluid Connection: 1/4 NPT
• Weight: 14.11 pounds
• Dimensions: 10.45 inches length, 8.45 inches width, 8.05 inches height
• Applications: Valve actuation, damper control, process automation, robotics
