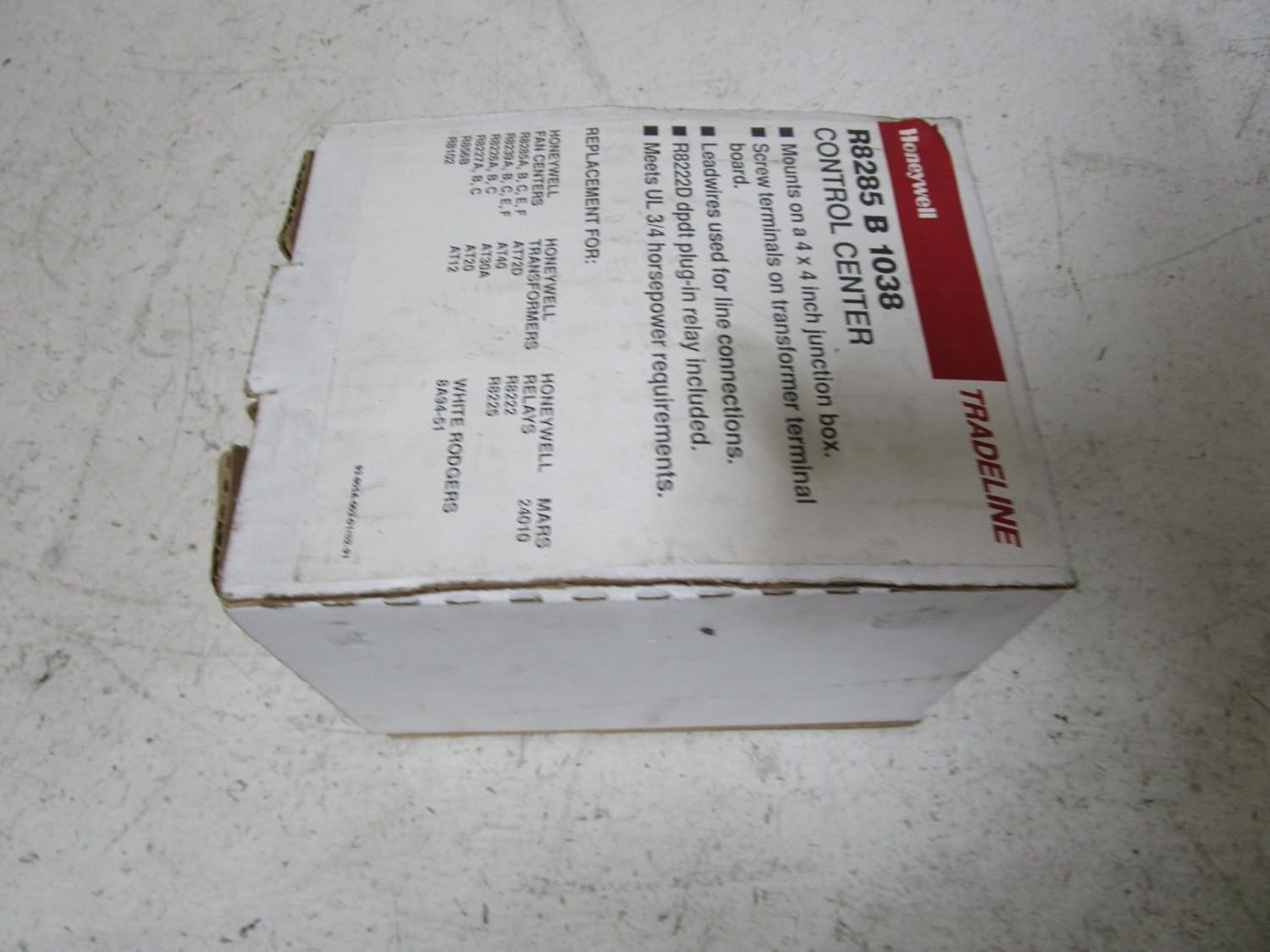

Honeywell R8285B1038 Fan Control Center 1.00 Wattage

Product Description

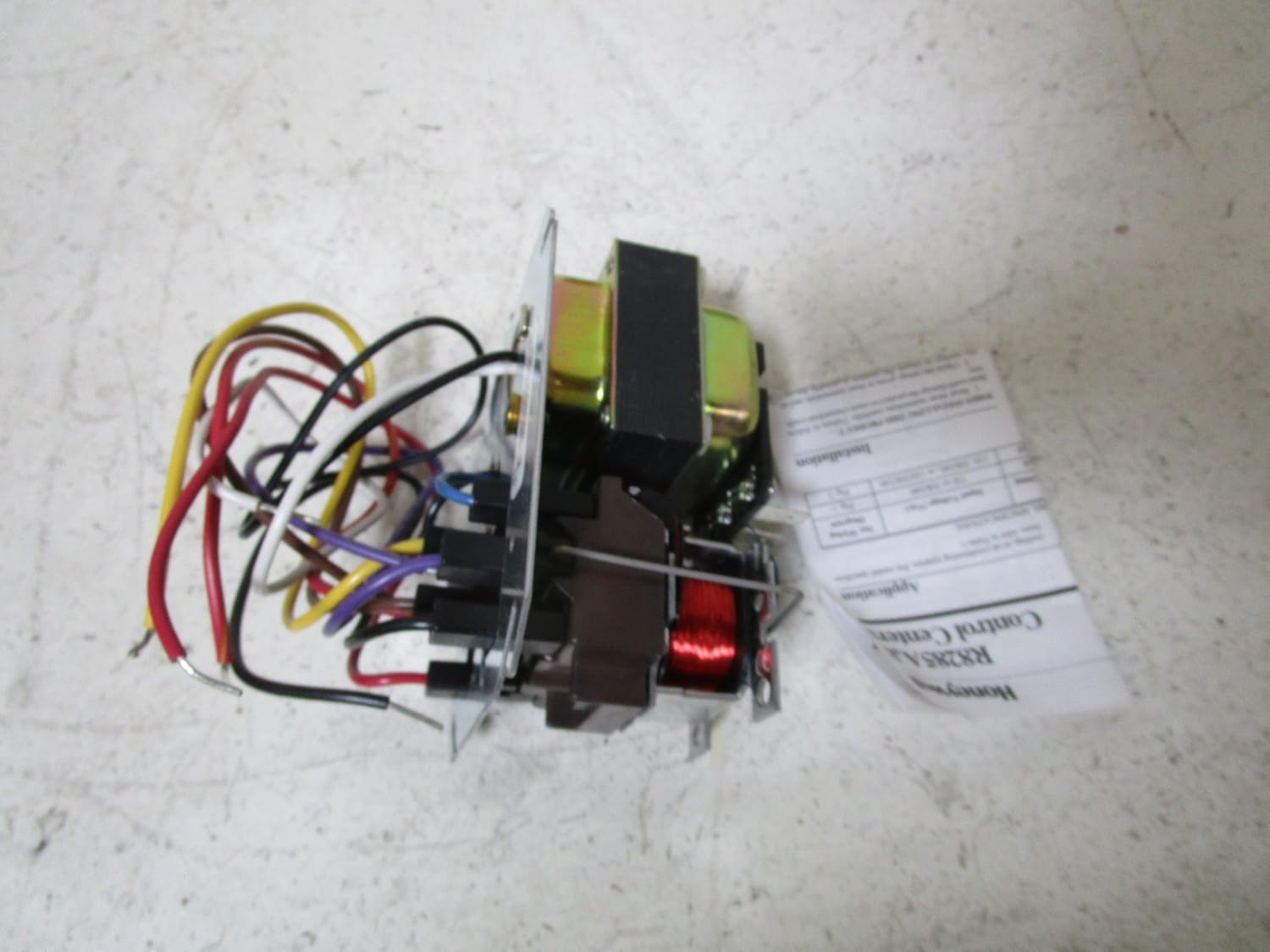

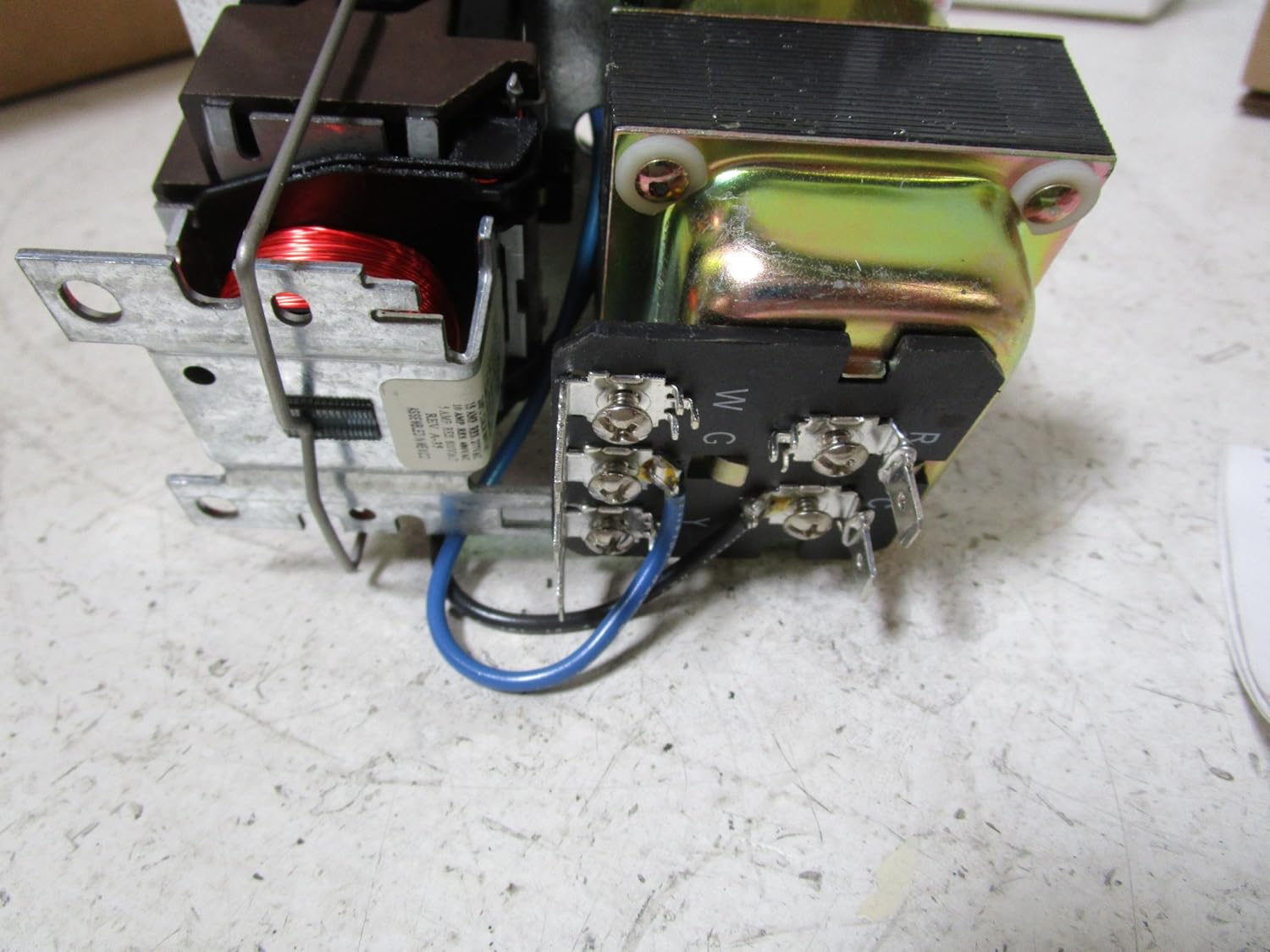

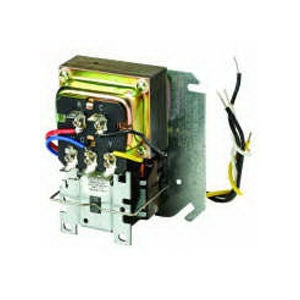

The Honeywell R8285B1038 Fan Control Center is designed for efficient operation in heating, cooling, and air conditioning systems. This control center provides low voltage control for line voltage fan motors and auxiliary circuits. It features a durable design and is suitable for mounting on a standard four by four inch junction box.

• Provides low voltage control of line voltage fan motors

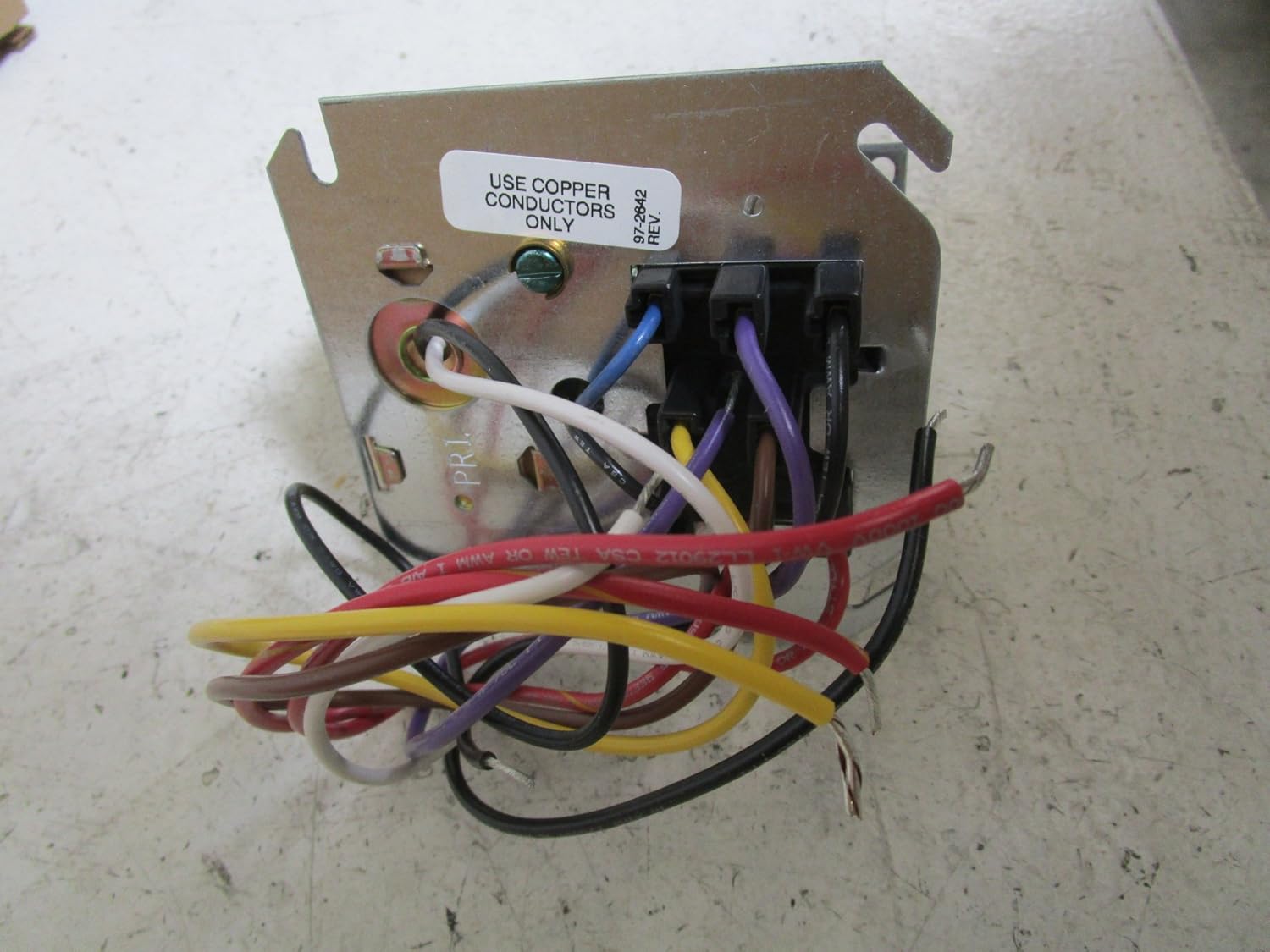

• Mounts easily on standard junction boxes
• Includes overload protection for enhanced safety

Product Highlights

This fan control center operates efficiently with a power rating of three-fourths horsepower and features double pole double throw (DPDT) relay functionality.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: R8285B1038

Technical Specifications

• Dimensions: Four and three-sixteenths inches high, four and a half inches wide, two and thirteen-sixteenths inches deep
• Voltage Rating: One hundred twenty VAC
• Amperage Rating: Twelve A at one hundred twenty VAC, six A at two hundred eight or two hundred thirty VAC
• Power Rating: Three-fourths horsepower, eleven watts
• Frequency Rating: Sixty Hz
• Relay Type: DPDT
• Transformer Primary Voltage: One hundred twenty VAC
• Transformer Secondary Voltage: Twenty-four VAC
