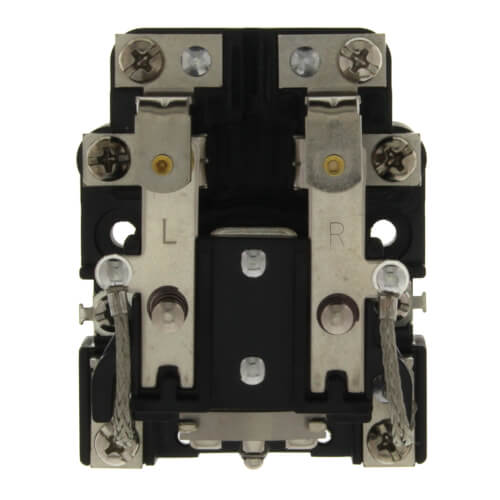

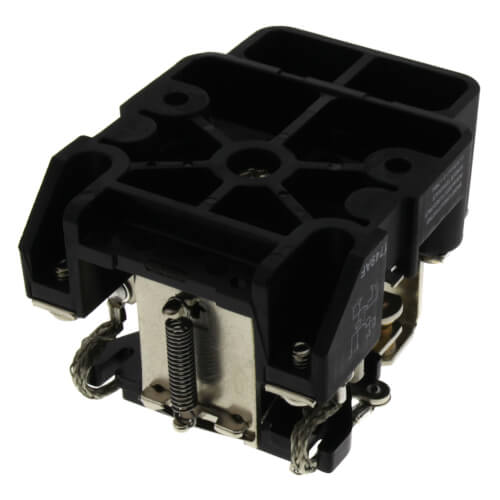

Square D 8501C015V20 SPDT Power Relay 30A 120V

Product Description

The Square D 8501C015V20 SPDT Power Relay is designed to control small single-phase motors and other light loads. This relay features a SPDT contact configuration with one normally open and one normally closed contact. It is equipped with a 120 VAC non-replaceable coil and heavy-duty contacts suitable for single-phase 1.5 HP motors at various voltages.

• SPDT contact configuration
• 120 VAC coil voltage
• Rated for single-phase motors

Product Highlights

This relay is ideal for electric heater, pumping, conveyor, and material handling applications.

Product Information

Standard Information

• Brand: Square D
• MPN: 8501C015V20

Technical Specifications

• SPDT Contact Configuration: One normally open, one normally closed
• Coil Voltage: 120 VAC
• Motor Rating: 1.5 HP at 120 VAC, 230 VAC or 600 VAC
• Resistive Rating: 30A at 300 VAC, 5A at 600 VAC
• Construction: Open frame
• Certifications: UL listed, CSA certified
• Applications: Electric heater, pumping, conveyor, material handling
