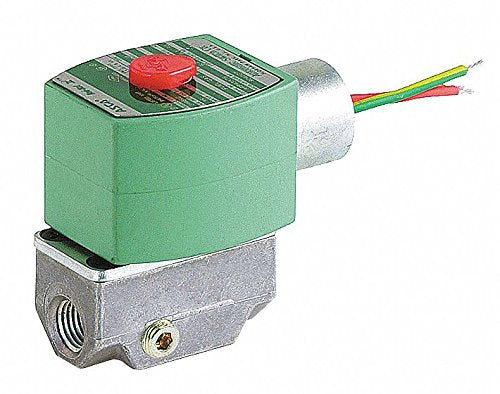

ASCO SV311A02N6CF5 3/8 Aluminum Fuel Gas Solenoid Valve with Test Port, Normally Closed

Product Description

ASCO's SV311A02N6CF5 is a 3/8 inch aluminum fuel gas solenoid valve with a test port. This normally closed valve operates on 120VAC and is designed for a variety of industrial applications.

• 3/8 inch pipe size
• 120VAC operation
• Aluminum body

Product Highlights

This solenoid valve is suitable for controlling the flow of fuel gas in commercial and industrial gas burners. Its normally closed configuration ensures safety by remaining closed when de-energized.

Product Information

Standard Information

• Item: Fuel Gas Solenoid Valve with Test Port
• Product Group: Fuel Gas Solenoid Valve
• Valve Ways and Positions: 2-Way/2-Position
• Valve Configuration: Normally Closed
• Media - Valves: Fuel Gas

Technical Specifications

• MPN: SV311A02N6CF5
• Pipe Size - Valves: 3/8 inch
• Min. Operating Pressure Differential: 0 psi
• Max. Operating Pressure Differential Air/Inert Gas: 15 psi
• Max. Operating Pressure Differential Water: 15 psi
• Environmental Rating - Valves: Indoor, Outdoor
• Voltage: 120VAC
• Coefficient of Volume: 1.2
• Body Material - Valves: Aluminum
• Coil Insulation Class: F
• Seal Material - Valves: NBR
• Max. Operating Pressure Differential: 15 psi
• Orifice Diameter: 5/16 inch
• BTUH: 64,400
• Ambient Temperature Range: -40 to 175 Degrees F
• Watts: 6.1
• NEMA Rating: 1, 2, 3, 3S, 4, 4X
• Coil Enclosure: General Purpose No Junction Box and Watertight
• Electrical Connections: 1/2 Conduit
• Max. Fluid Temperature: 125 Degrees F
• Frequency: 50/60 Hz
• Overall Length: 2-15/16 inches
• Overall Width: 3-5/16 inches
• Overall Height: 4-1/16 inches
• Center Line Pipe Center Size: 2-11/32 inches
• Application: For Gas Pilot Control of Commercial and Industrial Gas Burners
• Standards: UL, FM, CSA
