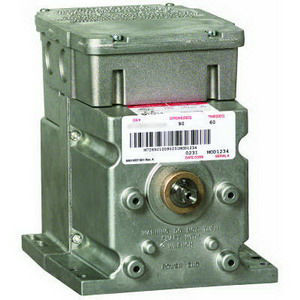

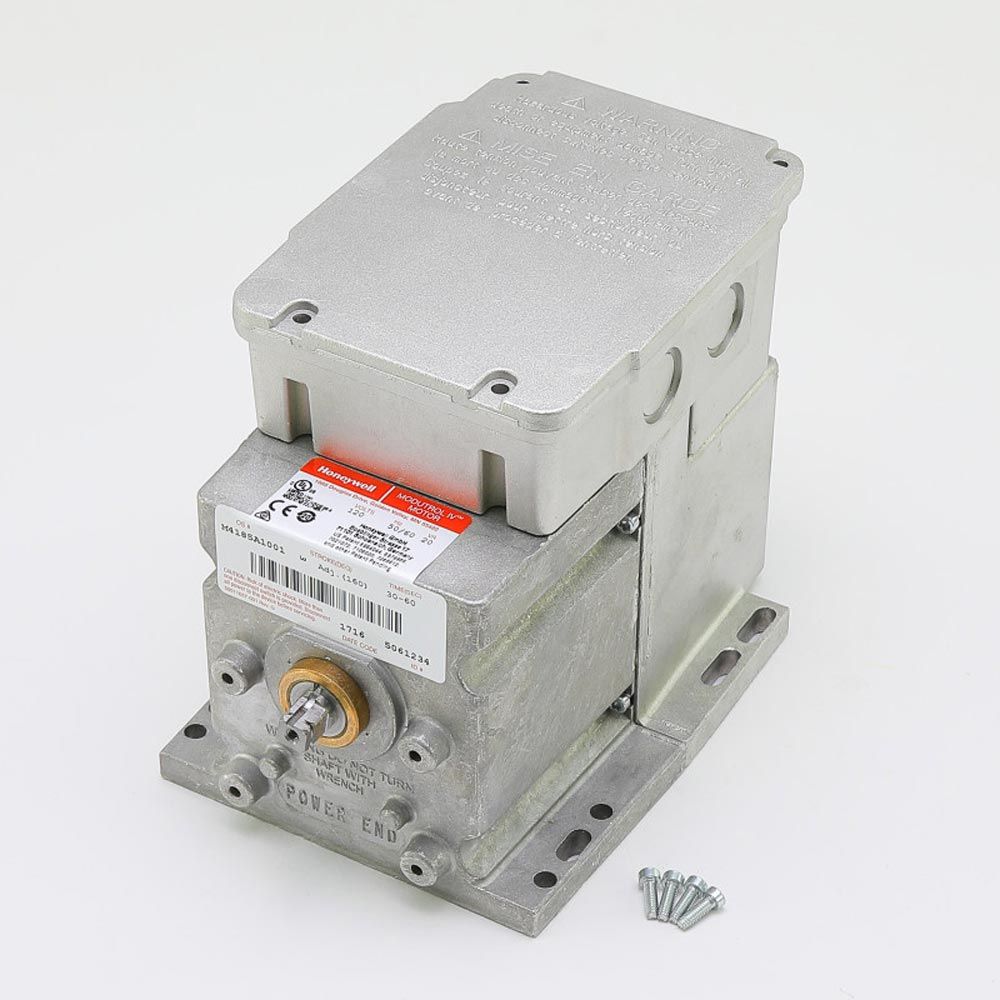

Honeywell M4185A1001 Spring Return Damper Motor Line Voltage 120V

Product Description

The Honeywell M4185A1001 is a reliable damper motor with spring return functionality. It operates at line voltage, specifically 120V. This two-position motor offers 60 lb-in torque and a fail-safe mode.

• Spring return functionality
• Quick-connect terminals
• Foot-mounted design

Product Highlights

This Honeywell M4185A1001 motor ensures dependable operation of dampers in HVAC systems. It closes or opens the damper automatically during power interruptions, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M4185A1001
• Model: M4185A

Technical Specifications

• Torque Rating: 60 Inch-lb
• Fail Safe Mode: Spring Return
• Control Signal: 2-Position, SPST
• Voltage Rating: 120 V, 50/60 Hz
• Power Consumption: 20 VA
• Rotation Angle: CW
• Stroke: 90-160 degrees
• Timing: 30-60 seconds
• Material: Die Cast Aluminum
• Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D
• Motor Type: Dual Ended Square Shaft
• Electrical Connection: Quick Connect
