Product Description

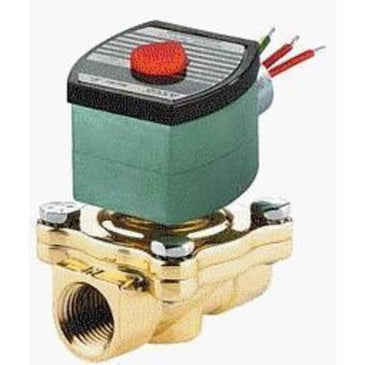

The Asco 8210G032 Solenoid Valve is designed for industrial applications requiring reliable fluid control. This 2-way valve is normally open and features a durable brass body. It has a 1-1/2 inch NPT end connection and operates on 120 alternating current. Suitable for air, water, light oil, non-corrosive fluid, and inert gas.
- Two-way, two-position operation
- Normally open configuration
- 1-1/2 inch NPT end connection
Product Highlights
This Asco solenoid valve ensures precise control of fluid flow, offering dependable performance in demanding environments. Its NBR seal material and Red-Hat enclosure add to its durability and leak-free operation.
Product Information
Standard Information
-
Brand: Asco
-
MPN: 8210G032
Technical Specifications
-
Type: 2-Way, 2-Position NO
-
Material: Brass
-
Seal Material: NBR
-
End Connection: NPT
-
Valve Position: Normally Open
-
Voltage: 120 AC
-
Pressure Rating: 150 psi AC
-
Nominal Size: 1-1/2 in
-
Orifice Size: 1-1/4 in
-
Enclosure: Red-Hat Type 1; Red-Hat II-Type 1, 2, 3, 3S, 4 and 4X; Watertight
-
Inlet to Outlet Length: 4.38 in
-
Top to Inlet Center: 4.96 in
