Product Description

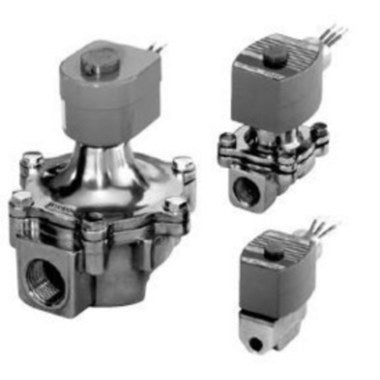

The Asco 8215G020 Solenoid Valve is a versatile solution designed for HVAC and gas valve applications. It is part of the Redhat® series and functions as a 2-way, 2-position normally closed valve. It is made from durable aluminum and features NPT end connections for easy installation.
- Direct-acting and pilot-operated actuator
- Handles air and vacuum media
- Compact design for limited space installations
Product Highlights
The Asco 8215G020 is ideal for low-pressure applications and provides reliable operation in air service environments. Its compact size makes it suitable for installations where space is limited.
Product Information
Standard Information
-
Brand: Asco
-
Series: 8215
-
Type: 2-Way 2-Position NC
Technical Specifications
-
MPN: 8215G020
-
Body Material: Aluminum
-
Media: Air/Vacuum
-
Actuator Type: Direct Acting/Pilot Operated
-
Nominal Size: 1/2 inch
-
Orifice Size: 3/4 inch
-
End Style: NPT
-
Dimensions: 2.46 inches W x 4.02 inches H
-
Inlet to Outlet Length: 2-3/4 inches
-
Top to Inlet Center: 3.46 inches
-
Softgoods Material: NBR/PTFE
