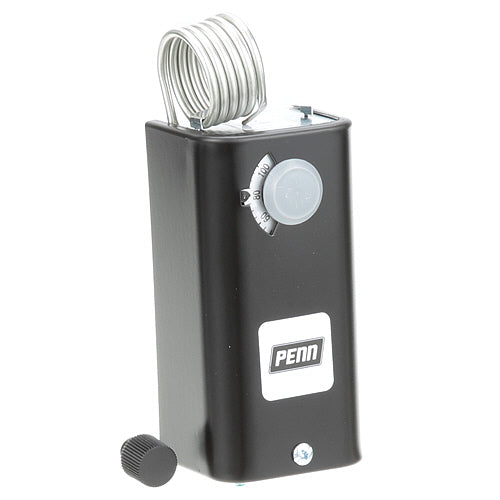

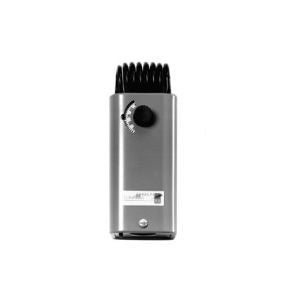

Johnson Controls A19BBC-2C Thermostat Coiled Bulb 20-80 Degrees Fahrenheit

Product Description

The Johnson Controls A19BBC-2C line volt mechanical thermostat is designed for use in a variety of applications. This thermostat operates on 120 to 277 VAC and is ideal for controlling heating and cooling in a range of environments.

• Reliable line voltage control for heating and cooling
• Adjustable differential for precise temperature control
• Suitable for low energy electrical loads

Product Highlights

Johnson Controls A19BBC-2C Line Volt Mechanical Thermostat, 120 to 277 VAC, provides dependable temperature control for a variety of environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A19BBC-2C

Technical Specifications

• Type: Line Voltage
• Color: Gray
• Voltage Rating: 24/277 VAC
• Number of Stages: 1
• Full Load Current: 10 A
• Sensing Bulb Size: 1-3/8 inches Dia x 2-1/4 inches L
• Number of Switches: 1
• Number of Relay Inputs: 1
• Number of Relay Outputs: 1
• Dimensions: 5-5/8 inches L x 2-1/8 inches W x 4-3/8 inches H
• Series: A19
• Phase: Single
• Stage: Single
• Width: 2.6 inches
• Height: 6.2 inches
• Length: 2.6 inches
• Weight: 0.5 lbs
• Prop 65: Yes
• Voltage: 120/277 VAC
• Cycle/Hertz: 60 Hz
• Package Width: 2.5 inches
• Package Height: 6 inches
• Package Length: 2.5 inches
• Package Weight: 2.8 lbs
• Cubic Measurement: 0.0243
• Dimensional Weight: 1 lb
