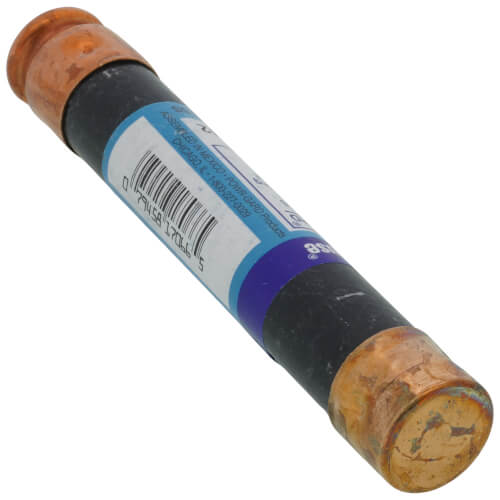

Littelfuse FLSR012 POWR-GARD Time Delay Fuse 12A 600VAC/300VDC Class RK5

Product Description

Littelfuse FLSR012 represents a pinnacle in circuit protection technology, offering a 12 Amp, 600VAC/300VDC Class RK5 fuse with dual-element and time-delay features. Engineered by Littelfuse, this time-delay fuse provides optimal safety and reliability for electrical systems, particularly in settings demanding robust overcurrent protection.

• Exceptional time delay and current limiting capabilities to handle motor startup surges and other transient overcurrents.
• Dual-element design enhances protection against both overloads and short circuits.
• Designed for rejection-style fuse blocks, preventing improper fuse installation.

Product Highlights

FLSR012 is UL listed and CSA certified, ensuring compliance with stringent safety standards. Its ability to interrupt up to 200kA at 600VAC and 20kA at 300VDC makes it an industry leader in electrical safety.

Technical Specifications

• Brand: Littelfuse
• MPN: FLSR012
• Type: Time Delay Fuse
• Class: RK5
• Amperage: 12A
• Voltage: 600VAC/300VDC
• Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
• Body Material: Fiberglass
• Dimensions: 5 inches Length x 13/16 inches Diameter
• Compliance: UL 248-12, CSA Certified
