Product Description

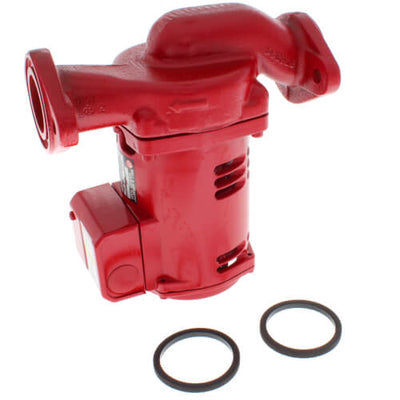

The Bell & Gossett PL-45 Hot Water Circulator Pump is designed for industrial fluid circulation systems. This durable pump is made from cast iron and operates at 115V with a 1/6 horsepower motor. Ideal for various applications, this maintenance-free pump ensures reliability and performance.
- Durable cast iron construction
- Operates at 115V
- 1/6 horsepower motor
Product Highlights
The Bell & Gossett PL-45 Hot Water Circulator Pump is built to handle demanding environments efficiently. It's a single-phase pump that supports a wide range of applications, ensuring minimal maintenance downtime. Its flange-less design allows for easy integration into existing piping systems.
Product Information
Standard Information
-
Brand: Bell & Gossett
-
MPN: PL-45
Technical Specifications
-
Housing Material: Cast Iron
-
Voltage: 115
-
Horsepower: 1/6 HP
-
Connection Style: Flanged
-
Max GPM@ Head: 49 gpm @ 1 ft.
-
Best Efficiency GPM@ Head: 25 gpm @ 18 ft.
-
Min GPM@ Head: 13 gpm @ 30 ft.
-
Shut-Off: 30 ft.
-
Drive Type: Direct
-
Loop Configuration: Closed
-
Max Operating Pressure: 150 psi
-
Max Temperature: 225 Degrees F
-
Shaft Material: Carbon/Silicon Carbide
-
Thermal Protection: Auto
-
Length: 9-1/8 inches
-
Width: 4-5/8 inches
-
Face to Face Dimension: 8-1/2 inches
