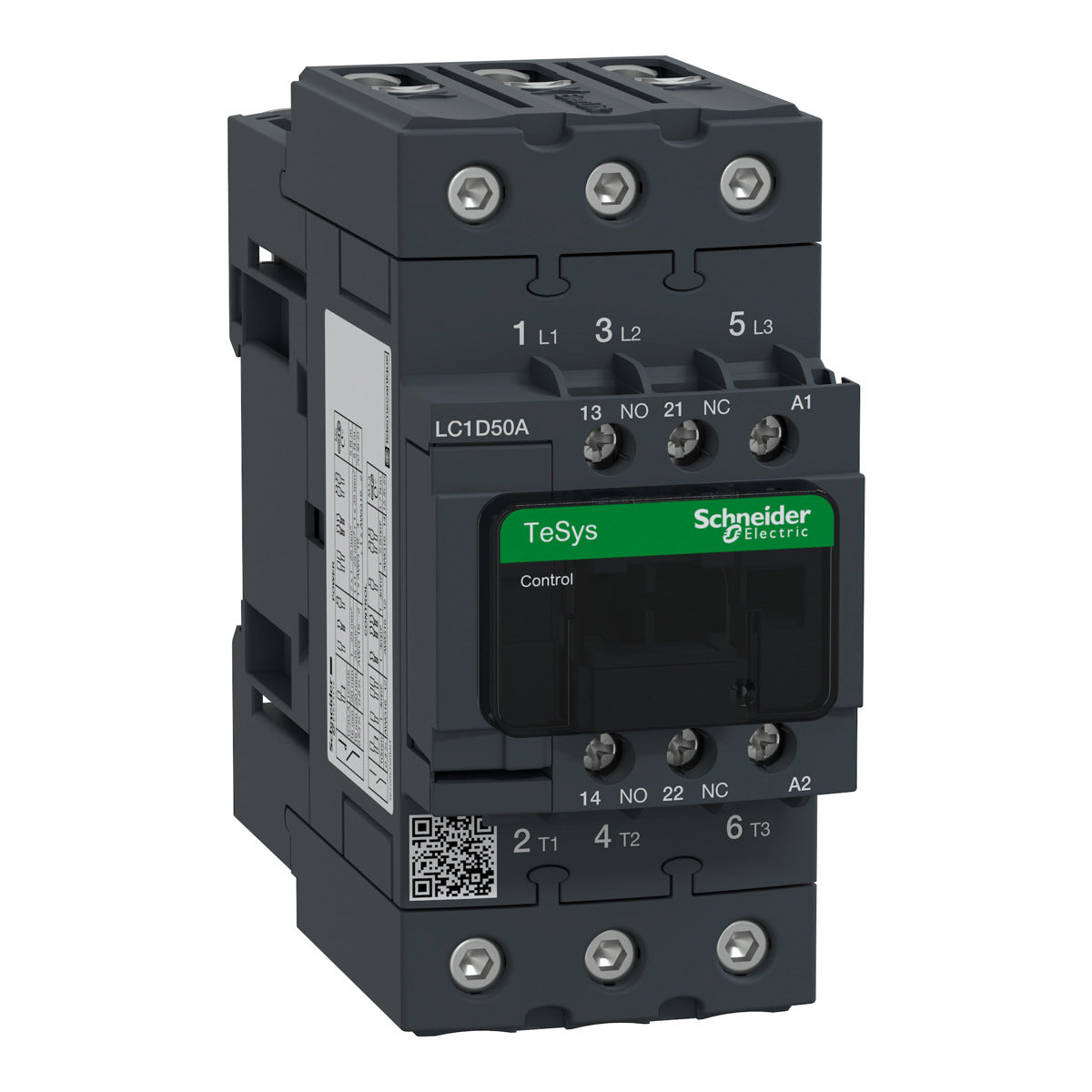

Schneider Electric LC1D50AF7 TeSys Deca IEC Contactor 50A 40HP 480VAC 110VAC Coil Non-Reversing

Product Description

The Schneider Electric LC1D50AF7 TeSys Deca IEC Contactor is meticulously crafted for seamless control system integration, capable of handling motor starters for a wide range of applications. This non-reversing contactor is recognized for its versatility and robust performance in inductive motor applications up to 50 full-load amps and for resistive loads.

• Supports motors up to 40 horsepower at 480 volts AC, ensuring powerful operation across various industries.
• Equipped with a 110 VAC 50/60 Hz control coil, providing consistent performance in a variety of power environments.
• Features a standard built-in auxiliary contact configuration, enhancing operational reliability.

Product Highlights

This contactor is well-suited for professional setups that require reliable and efficient motor control. With easy installation options including DIN rail and direct panel mounting, it offers flexibility for system designers and engineers.

Product Information

Standard Information

• Mounting Type: Rail Plate
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Current: 50 Amps
• Coil Voltage: 110 V AC
• Contact Configuration: 1 NO + 1 NC, 3 NO
• Connection Type: Screw clamp terminals for secure and reliable connections
• Height: 4.80 inches
• Width: 2.17 inches
• Depth: 4.72 inches
• Weight: 1.87 lbs
