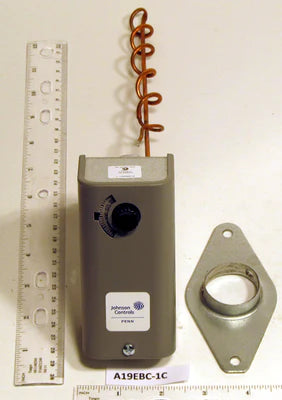

Johnson Controls A19EBC-1C Penn Series A19 Fan or Cutout Control, Liquid Expansion Bulb, Counter-Flow Warm Air Furnace, SPDT Switch Action, 38 to 177 Degrees Celsius Range, 5-20 Degrees Celsius Differential, 6 Bulb

Product Description

The Johnson Controls A19EBC-1C thermostat is engineered for precision in temperature control within industrial settings. This thermostat is part of the well-known Penn Series A19, ideally suited for fans or cutout control applications. It features a liquid expansion bulb and is constructed to work efficiently in counter-flow warm air furnaces.

• Wide temperature range from 38 to 177 degrees Celsius
• SPDT switch action for reliable control
• 6-bulb sensor for enhanced sensitivity and accuracy

Product Highlights

The Johnson Controls A19EBC-1C provides exceptional temperature control for various industrial applications. Its robust design ensures optimal performance and efficiency, handling a temperature range of 38 to 177 degrees Celsius with a differential adjustment of 5 to 20 degrees Celsius. The 6-foot capillary length offers versatility in mounting and remote placement.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A19EBC-1C
• Type: Thermostat
• Country of Origin: United States
• Package Quantity: 1

Technical Specifications

• Adjustment Range: 9 to 36 degrees Fahrenheit
• Switch Action: SPDT
• Sensor: Six-Bulb
• Capillary Length: 6 feet
• Enclosure Type: NEMA-1
• Application: Remote Bulb Temperature
• Differential: Manual Reset
• Temperature Range: 38 to 177 degrees Celsius
• Package Dimensions: 16.38 inches x 5.63 inches x 2.5 inches
• Weight: 1.55 pounds
