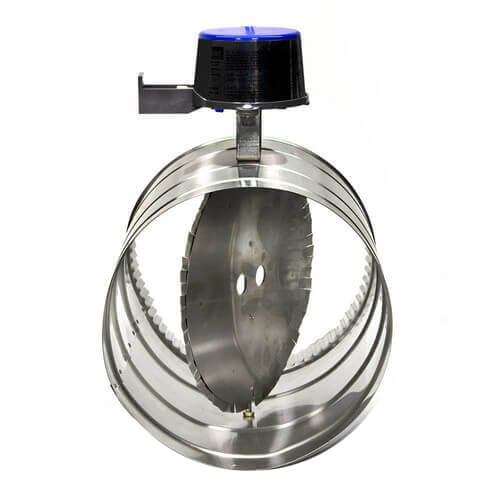

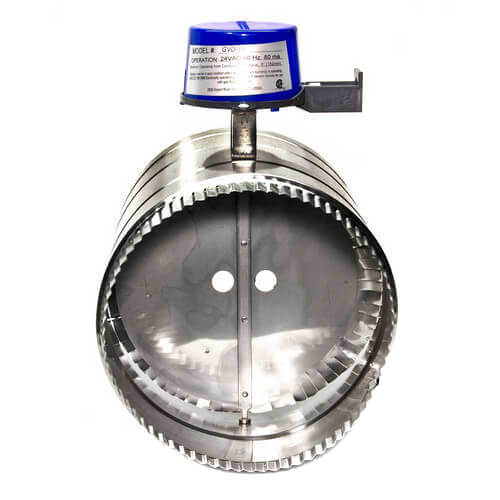

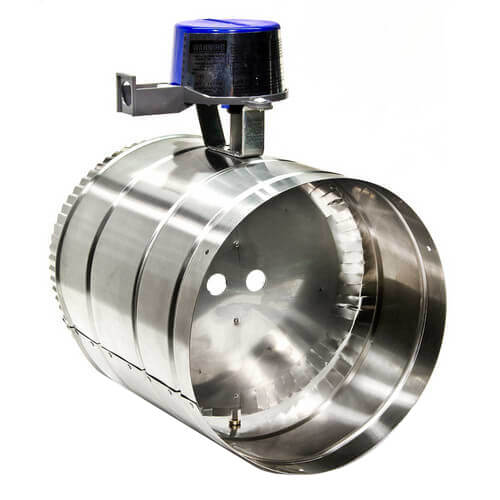

Field Controls GVD-10PL Vent Damper 10 Inch Pipe Size Stainless Steel

Product Description

The Field Controls GVD-10PL Vent Damper is a reliable component for regulating airflow. It is made from stainless steel and designed for use with gas boilers. The damper fits a 10-inch pipe size and operates automatically to maintain natural draft during use while preventing heat loss during off cycles. It is compatible with 24VAC, 60Hz intermittent ignition and standing pilot ignition systems.

• Stainless Steel
• Automatic Operation
• Compatible with 24VAC, 60Hz Systems

Product Highlights

This vent damper helps conserve energy by minimizing heat loss. It features dual safety switches, ensuring the burner operates only when the damper is fully open. The stainless steel construction offers superior resistance to corrosion.

Product Information

Standard Information

• Item Weight: 5.395 lbs
• Package Quantity: 1

Technical Specifications

• Pipe Size: 10 inches
• Length: 12-1/8 inches
• Height: 14-7/8 inches
• Voltage: 24V
• Material: Stainless Steel
• Time to Open: 15 seconds
• Time to Close: 15 seconds
• Application: Gas Boiler
• Frame Material Thickness: 0.024 inches
• Blade Material Thickness: 18 gauge
• Maximum Temperature Rating: 221 degrees Fahrenheit
• Country of Origin: United States
