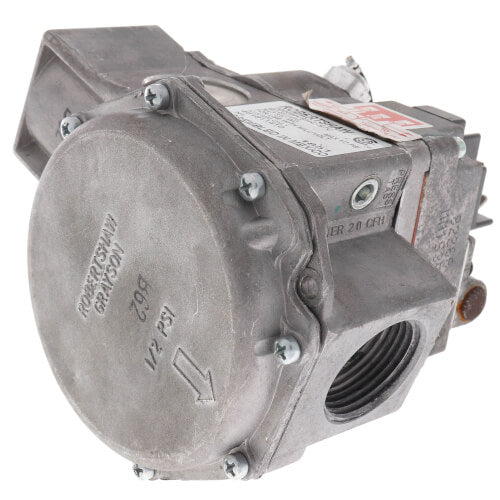

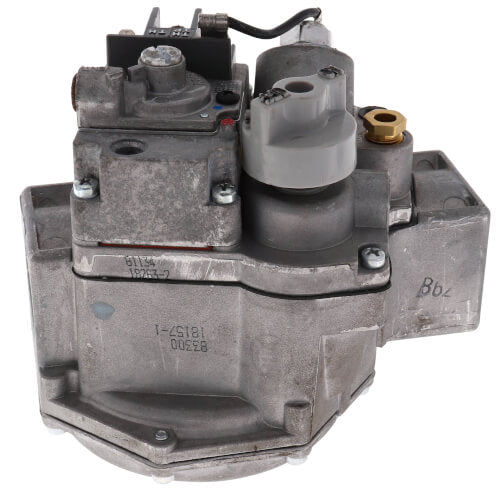

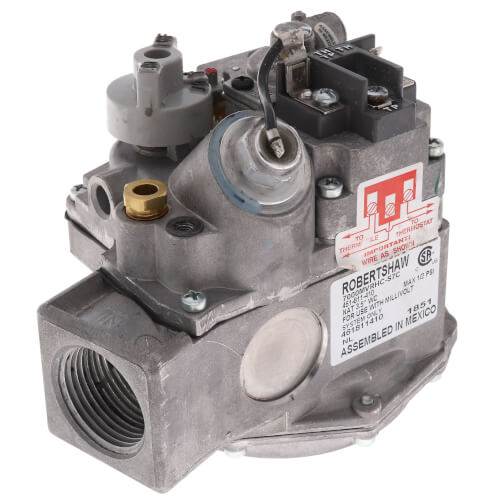

Robertshaw 700-522 1MV Slow Open Gas Valve 3.5WC

Product Description

The Robertshaw 700-522 1MV Slow Open Gas Valve is designed for precise gas flow control. It combines a manual gas cock, automatic pilot safety valve, and a millivolt operator, ensuring safety and performance in a range of applications.

• Manual gas cock and automatic pilot safety
• Suitable for natural gas and propane
• Mountable in any position except upside down

Product Highlights

This gas valve is actuated by a wall thermostat and includes standard features like a pilot outlet, pilot gas filter, and pilot adjusting key. It is built to meet the American National Standards Institute (ANSI) mis-wiring standards effective from January 1, 1996. This ensures easy disconnection and reconnection of gas valve wires without error.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 700-522

Technical Specifications

• Fuel Type: Natural Gas
• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Pressure Reg Setting: 3.5 W.C. NAT. GAS
• Side With Plugs: Straight Thru
• Capacity (BTU): 600000
• Voltage: 0.75v
• Weight: 2.64 lbs
• Dimensions: 5.5 inches (L) x 7.65 inches (W) x 4.5 inches (H)
