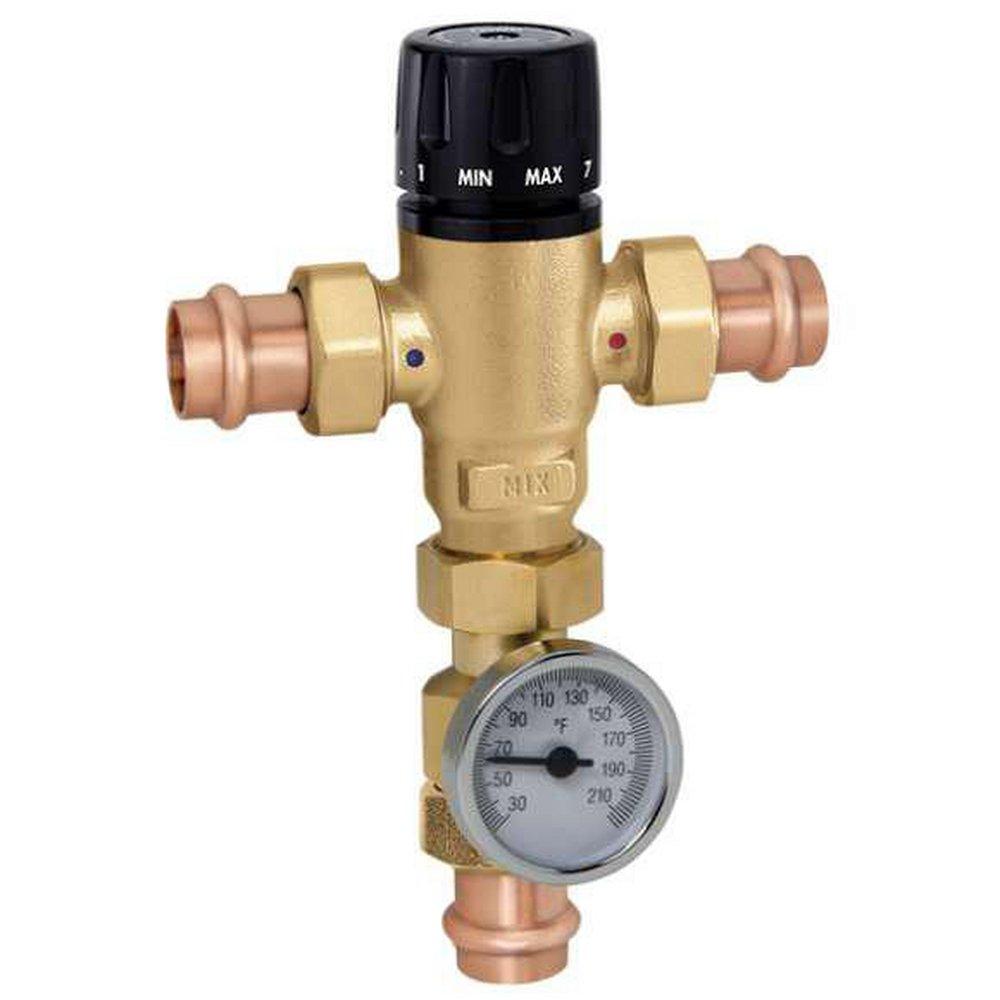

Caleffi 521616A MixCal 1 Inch Press Thermostat Mixing Valve

Product Description

The Caleffi North America 521616A MixCal 1 inch press thermostat mixing valve is designed for use in both hydronic heating systems and domestic water systems. It ensures consistent water temperature by adjusting for fluctuations in temperature and pressure of incoming water. Certified by ASSE 1017 and Low Lead Plumbing Law, this valve combines durability with precision.

• Low-lead brass body
• Internal anti-scale materials
• Locking set point knob

Product Highlights

The Caleffi 521616A thermostat mixing valve provides precise temperature control. Its durable construction and adjustable range make it suitable for various applications.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 521616A

Technical Specifications

• Body Material: Brass
• Connection Method: Press
• Connection Type: Press x Press
• Flow Capacity: 1 gpm
• Max Pressure (PSI): 200 psi
• Temperature Range: 85°F to 150°F
• Max Inlet Temperature: 195°F
• Inlet to Outlet Length: 5-7/8 inches
• Top to Inlet Center: 2-5/8 inches
• Softgoods Material: EPDM Seal
• Trim Material: Stainless Steel
• Flow Capacity (Cv): 3
• Standards Met: ASSE 1017
• Gauge Scale: 30°F to 210°F
• Gauge Accuracy: ±6°F
• Gauge Dial: 2 inches diameter
