Product Description

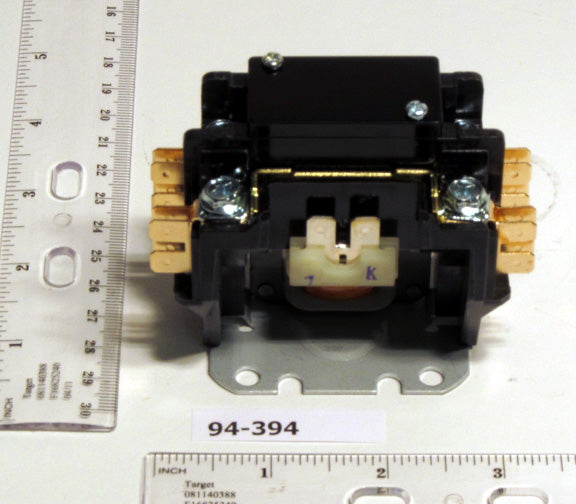

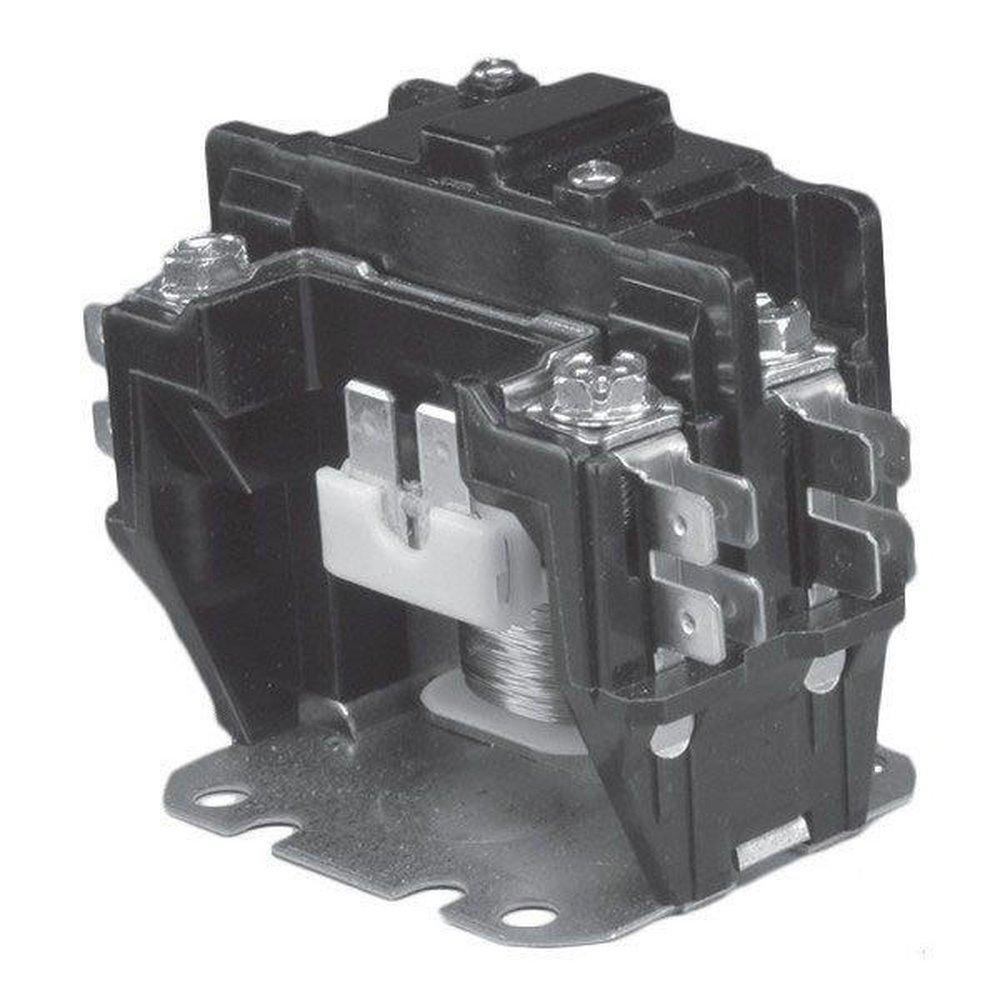

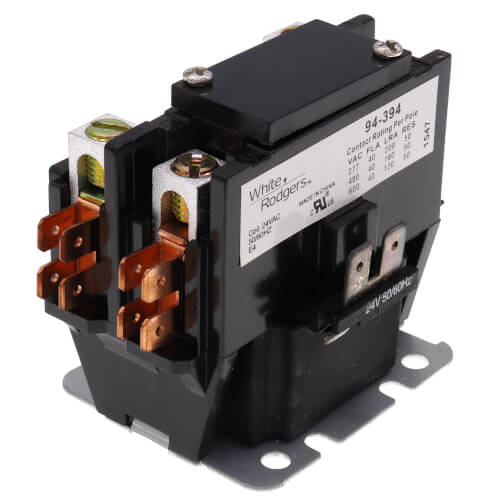

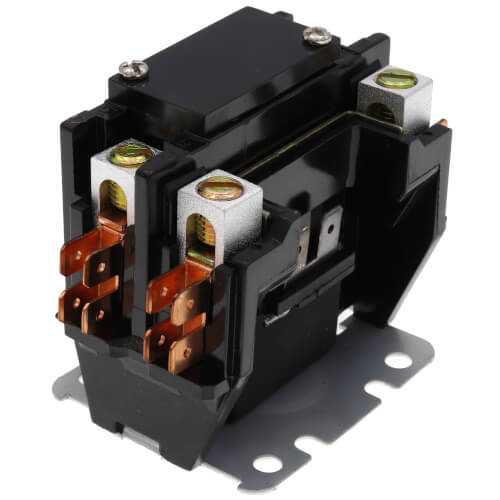

The WHITE-RODGERS 94-394 air conditioning contactor features straight-through wiring and is a definite purpose contactor. This 1-pole contactor is suitable for residential central air conditioning applications. It has screw and double 1/4 inch quick connect termination type. The contactor includes a cover and bus bar.
- Replaces Many Contactors Used by OEM's

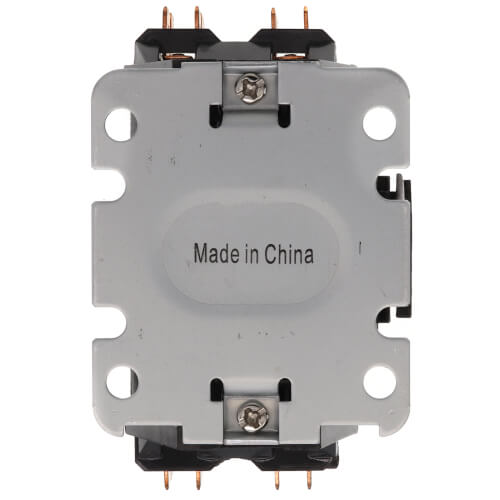

- Universal Style Mounting Bracket Fits Existing Mounting Holes
- Screw Terminals and 1/4 Inch Quick Connect Terminals for Easy Installation
Product Highlights
The WHITE-RODGERS 94-394 contactor is designed for residential central air conditioning. It features universal mounting and easy installation with screw and quick connect terminals.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 94-394
-
Country of Origin: United States
Technical Specifications
-
MPN: 94-394
-
Voltage Rating: 24 Volt AC
-
Current Rating: 40 Amp
-
Temperature Rating: -40 to 150 Deg F
-
Number of Poles: 1
-
Coils Frequency: 50/60 Hertz
-
Duty Cycle: Continuous
-
Mounting Type: Universal Mount
-
Used On Item: Residential Central Air Conditioning
-
Applicable Standard: UL, ARI
-
Termination Type: Screw and Double 1/4 Inch Quick Connect
-
Includes: Cover, Bus Bar
-
Size: 3-1/4 Inch Width x 2 Inch Depth x 2-1/2 Inch Height
-
Item: Contactor, WR/RBM TYPE 121, Straight-Through Wiring, 1 Pole, Definite Purpose
-
Manufacturer Name: White-Rodgers
-
Manufacturer Part Number: 94-394S1
-
Series/Model: 94
-
Hz: 50/60
-
Depth: 3.38 in
-
Width: 2 in
-
Height: 2.53 in
-
Reversing: No
-
Standards: CE, CSA
-
Full Load Amps-Inductive: 40 A
-
Full Load Amps-Resistive: 50 A
-
Coil: 24 VAC
-
Contacts: 40 Amp
-
Coil Data - DC Resistance: 16.5 Ohms
-
Coil Data - Current: 208 mA
-
Coil Data - VA (Nominal): 5 VA
-
Coil Data - Maximum VA (Inrush): 20 VA
-
Application: Air Conditioning
-
Type: Single Pole Definite Purpose
-
Voltage: 24V
-
Amperage: 40
-
Hertz: 60 50
-
DC Resistance: 16.5 ohms
-
mA: 208
-
Electric Connection: 1/4" Quick-Connect Terminals, Screw Terminals
-
Operating Temperature: -40 to 150 deg F
-
Coil Voltage: 24 VAC
-
Maximum Load Current: 40 A
-
Frequency Rating: 50/60 Hz
-
Contact Rating: 277 to 600 V
-
Terminal: Screw and Double 1/4 in Quick Connect
-
Operating Cycles: 100000 Cycles
-
Dimensions: 2 in L x 2-1/2 in W x 3-1/4 in H
