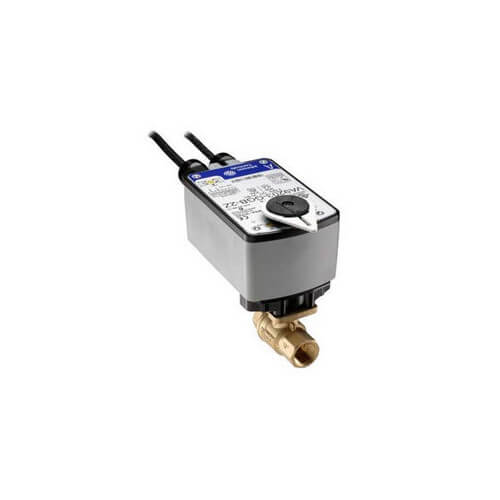

Johnson Controls VG1245CP+923GGB Two-Way Stainless Steel Trim NPT Ball Valve with Electric Actuator

Product Description

The Johnson Controls VG1245CP+923GGB comprises a stainless steel, two-way ball valve with a spring-return electric actuator, designed to efficiently control the flow of fluids in HVAC systems. It is designed to interface seamlessly with automation systems to manage hot or chilled water, and in some variants, low-pressure steam.

• Equipped with a forged brass body ensuring durability and a high static pressure rating of 580 psig.
• Includes a VA9203-GGB-2Z open spring-return electric actuator for reliable operation.
• Offers sizes from half an inch up to two inches, catering to various system requirements.

Product Highlights

This valve assembly is ideal for on/off, floating, or proportional control tasks in building climate management.

Product Information

Standard Information

• Actuator Compatibility: Compatible with Johnson Controls M9100, M9106, M9109, VA9104 series, and other models.
• Installation: Can be factory or field mounted.

Technical Specifications

• Pressure Rating: 580 psig.
• Control Type: On/Off, floating, proportional.
• Connection Type: NPT threaded.
• Flow Capacity: 18.7 Cv.
• Size Range: 0.5 to 2 inches.
• Fluid Temperature: -22 to 212 degrees Fahrenheit.
