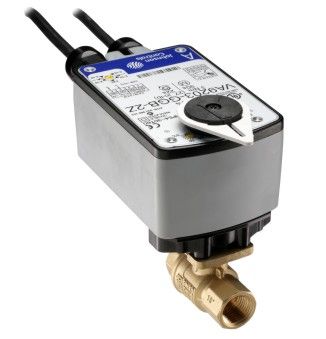

Johnson Controls VG1245CP+923AGB Stainless Steel Trim NPT Ball Valve with Electric Actuator VA9203-AGB-2Z

Product Description

The Johnson Controls VG1245CP+923AGB is a high-quality stainless steel trim NPT ball valve paired with an efficient VA9203-AGB-2Z electric actuator. It is designed primarily for regulating the flow of hot or chilled water and in some cases, low-pressure steam within HVAC systems.

• Robust forged brass body ensures a long service life and exceptional pressure handling up to 580 psig.
• Compatible with a range of Johnson Controls actuators including VA9104, M9106, and M9109 series.
• Ideal for applications requiring on/off, floating, and proportional control.

Key Features

This valve setup is designed for ease of use and reliability in commercial HVAC systems. It supports an auxiliary SPDT switch and has a power requirement of 24 VAC/VDC.

Technical Specifications

• Body Material: Forged Brass
• Connection Type: Threaded NPT
• Size: 1 inch
• Actuator Type: Electric, Model VA9203-AGB-2Z
• Pressure Rating: 580 psig static
• Electrical Connection: 48 inches appliance cable
• Temperature Range: -22 to 212 degrees Fahrenheit
• Flow Capacity (Cv): 18.7
