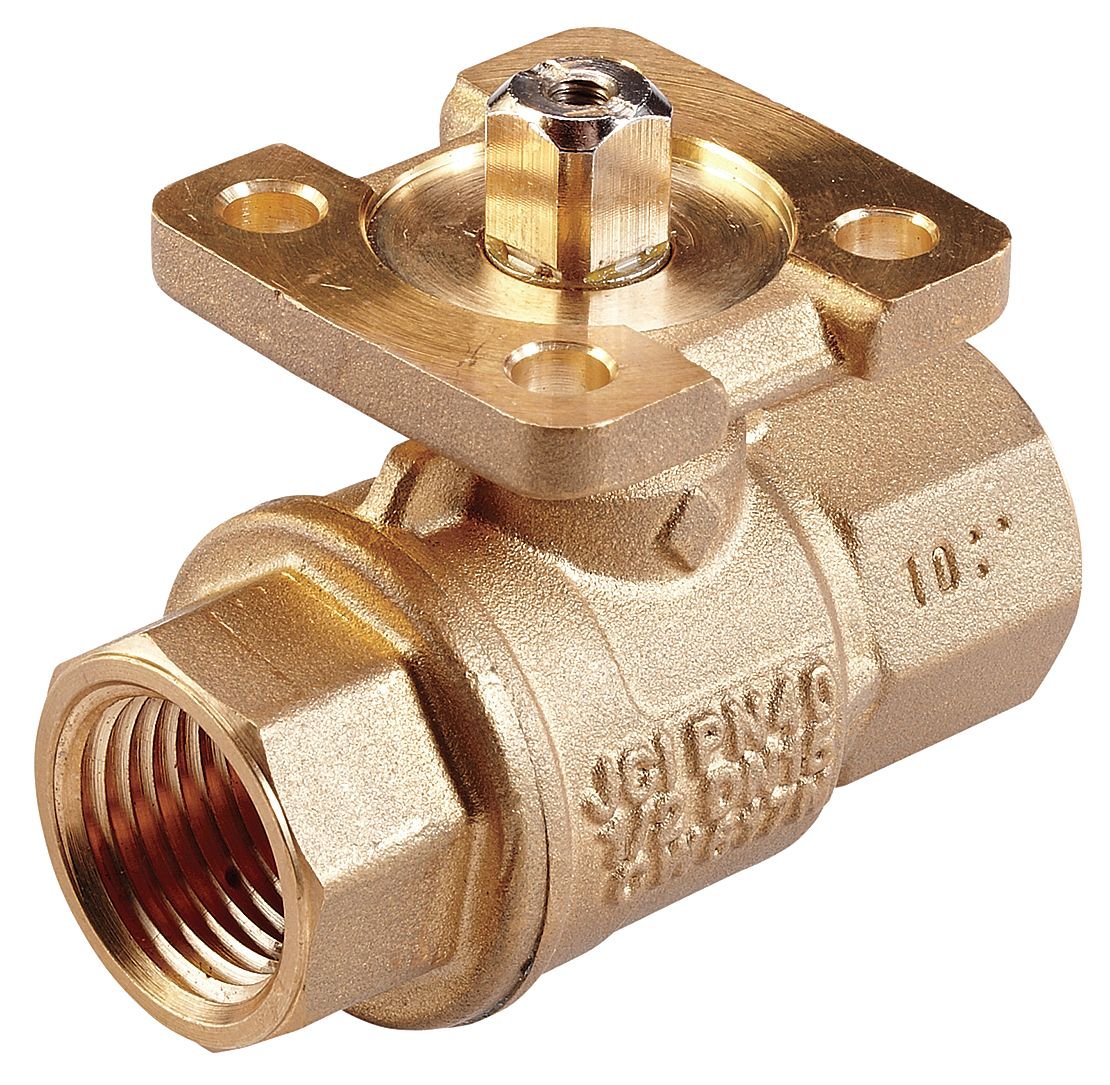

Johnson Controls VG1245CN+943BGA Model VG1245CN Two-Way Stainless Steel Trim NPT Ball Valve with Model VA9203-BGA-2 Closed Non-Spring-Return Electric Actuator Without Switch

Product Description

Johnson Controls VG1245CN+943BGA model VG1245CN two-way stainless steel trim NPT ball valve with VA9203-BGA-2 closed non-spring-return electric actuator is designed for HVAC systems. This valve regulates the flow of hot or chilled water, and low-pressure steam in some models.

• Forged brass body
• 24 VAC +/- 20%, VDC +/- 10%
• Two-way design

Product Highlights

The VG1245CN+943BGA features a durable forged brass body providing a 580 psig static pressure rating. Its 24V on/off actuator meets the rigorous demands in HVAC applications, ensuring optimal performance and reliability.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG1245CN+943BGA

Technical Specifications

• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Electrical Connections: 48 in. 18 AWG Appliance Cable
• Pressure Rating: 580 psig static pressure
• Flow Capacity (Cv): 11.7 Cv
• Material: Stainless Steel
• Body Pattern: 2-Way
• Actuator Type: On/Off, 24V
• Fail Safe Mode: Spring Return, Port A Closed
• Connection Type: Threaded
• Fluid Temperature Range: -22 to 212 degrees Fahrenheit
