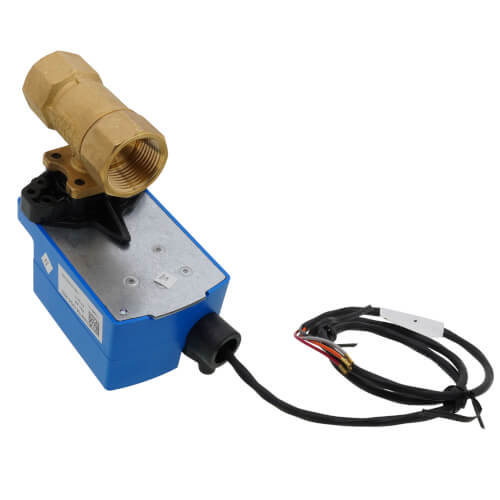

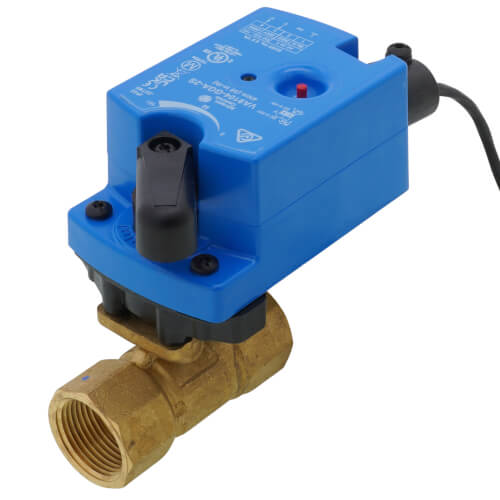

Johnson Controls VG1245CP+9A4GGA Two-Way Stainless Steel Trim NPT Ball Valve

Product Description

The Johnson Controls VG1245CP+9A4GGA Two-Way Stainless Steel Trim NPT Ball Valve is engineered for precise flow regulation in HVAC systems. This robust valve is suitable for both hot and chilled water applications and even low-pressure steam, making it a versatile option for various settings.

• Constructed with a forged brass body capable of handling up to 580 psig static pressure.

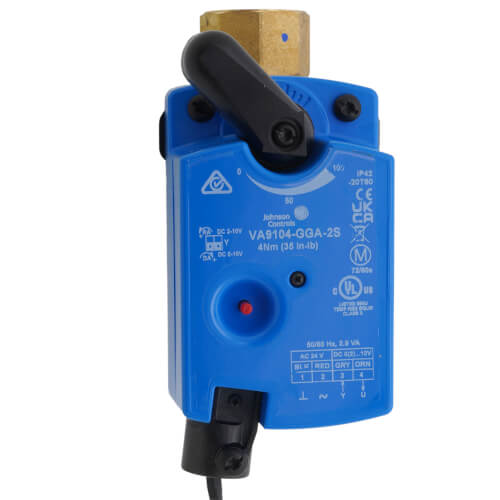

• Compatible with Johnson Controls electric actuators including models VA9104, M9106, M9109, and M9100 for diverse control options.
• Provides a Cv (flow coefficient) of 18.7, ensuring efficient fluid flow regulation.

Product Highlights

Designed to work effectively within a temperature range of -22 to 212 degrees Fahrenheit. Equipped with features like non-spring return and a proportional actuator, this valve offers reliable performance under varying operational conditions.

Product Information

Standard Information

• Power Requirements: 24 VAC +25%/-20%
• Position Feedback: 0(2) to 10 VDC

Technical Specifications

• Body Material: Stainless Steel
• Connection Type: Threaded
• Actuator Type: Proportional, 0(2) to 10 VDC, with a 500 ohm resistor, 0(4) to 20 mA
• Fail Safe Mode: Non-Spring Return
• Electrical Connections: 120 in. Plenum Cable
