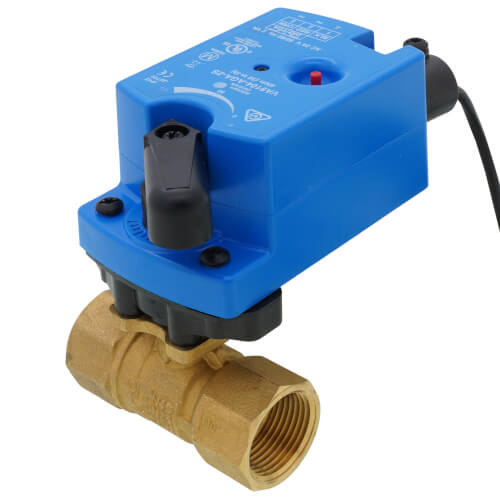

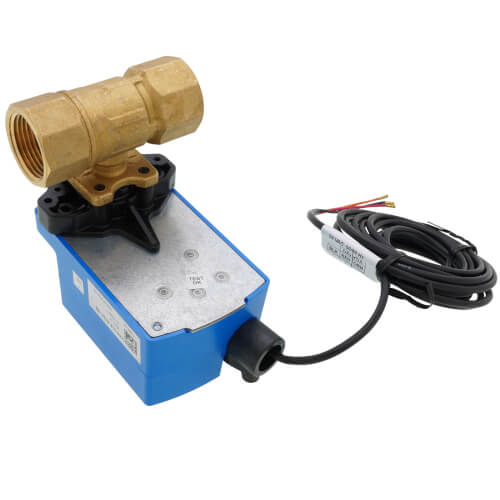

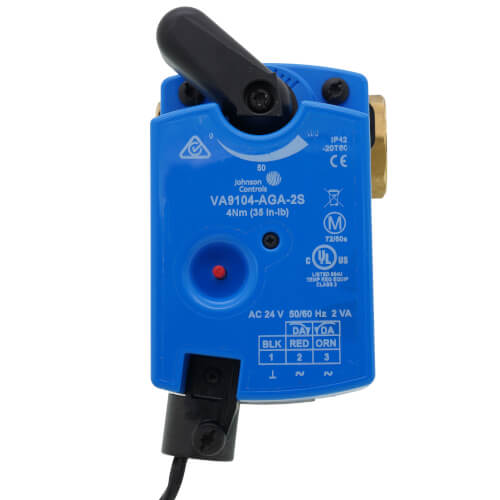

Johnson Controls VG1241CP+9A4GGA Two-Way Brass Valve with Electric Actuator

Product Description

The Johnson Controls VG1241CP+9A4GGA is a two-way brass valve with an electric actuator. Designed for regulating the flow of hot or chilled water and low-pressure steam in HVAC systems, this valve ensures efficient control and reliable performance. Compatible with various non-spring and spring-return actuators.

• Forged brass body for durability
• Static pressure rating of 580 psig
• Available in multiple sizes

Product Highlights

This two-way brass valve and electric actuator from Johnson Controls is designed for effective flow regulation in HVAC systems, ensuring precise control and flexibility in various applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1241CP+9A4GGA

Technical Specifications

• Size: 1 inch
• Torque: 35 lb-in
• Material: Brass
• Body Pattern: 2-Way
• Actuator Type: Proportional, 0 (2) to 10 VDC, 0 (4) to 20 mA, w/ 500 ohm resistor
• Fail Safe Mode: Non-Spring Return
• Connection Type: Threaded
• Flow Capacity: 18.7 Cv
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
