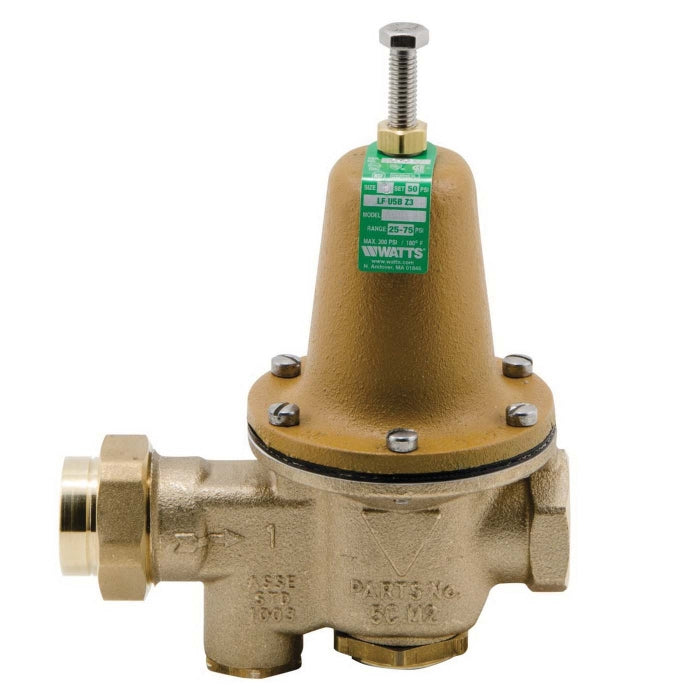

Watts 0009162 LFU5B-Z3 1 Inch Pressure Reducing Valve Cast Copper Silicon Alloy Replacement 0009162

Product Description

The Watts LFU5B-Z3 pressure reducing valve is designed for optimal water flow regulation in various applications. Constructed from cast copper silicon alloy, it ensures durability and compliance with strict safety standards including ASSE 1003 and ANSI/NSF 61G certification.

• Lead-free composition meeting current regulatory requirements.
• Adjustable pressure settings ranging from 10 to 35 psi.
• Integral stainless steel strainer and replaceable seat module for easy maintenance.

Product Highlights

This valve is notable for its ability to handle pressures up to 300 psi and temperatures from 33 to 160 degrees Fahrenheit, making it suitable for both commercial and residential settings.

Product Information

Standard Information

• Connection Type: Female Union x FNPT
• Use: Suitable for low pressure applications

Technical Specifications

• Dimension: 6-3/4 in L x 7-3/8 in W x 7-3/8 in H
• Material: Cast Copper Silicon Alloy
• Pressure Rating: 10 - 35 psi
• Seat Material: Replaceable Stainless Steel
• Trim Material: Stainless Steel
• Temperature Rating: 33 - 160 degrees Fahrenheit
