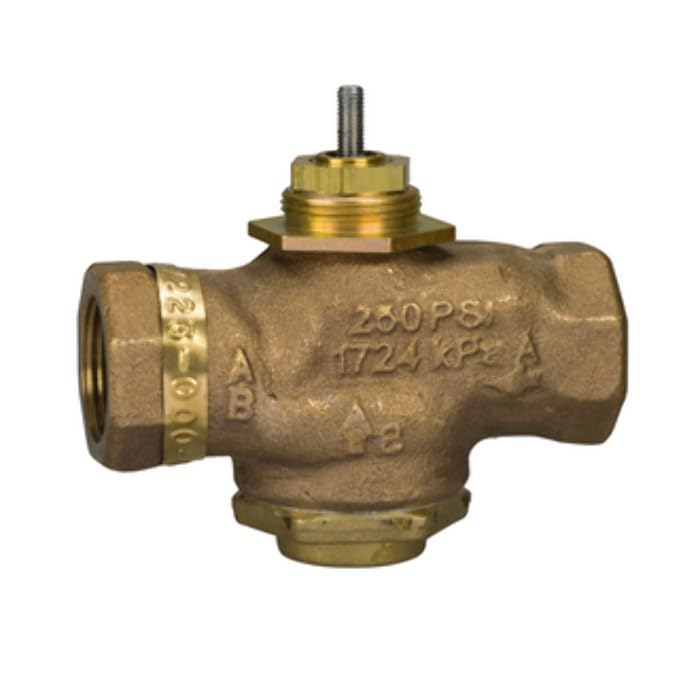

Schneider Electric VB-7223-0-4-08 Series Vb-7000 Two-Way Globe Valve Body NPT Threaded Straight Pipe End Connection Stem Up Closed Brass Plug 1 Port Size

Product Description

The Schneider Electric VB-7223-0-4-08 Series VB-7000 Two-Way Globe Valve Body is designed for efficient HVAC control in various applications. It features an NPT threaded straight pipe end connection and a brass plug with a stem up closed design. Ideal for use in chilled water, hot water, and steam systems, this globe valve ensures reliable performance and durability.

• Fine, accurate control
• Energy-efficient close-off
• High differential-pressure tolerance

Product Highlights

The Schneider Electric VB-7223-0-4-08 globe valve offers high range ability and tight sealing. Its precise control ensures comfortable and responsive regulation. This valve is compatible with all Schneider Electric actuators.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VB-7223-0-4-08
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: MNPT
• Material: Brass
• Exterior Finish: Brass
• Specification Met: RoHS

Technical Specifications

• Product Dimensions: 15.75 x 11.81 x 5.91 inches
• Weight: 3.23 pounds
• Port Size: 1 inch
• High Differential-Pressure Rating: up to 87 psi
