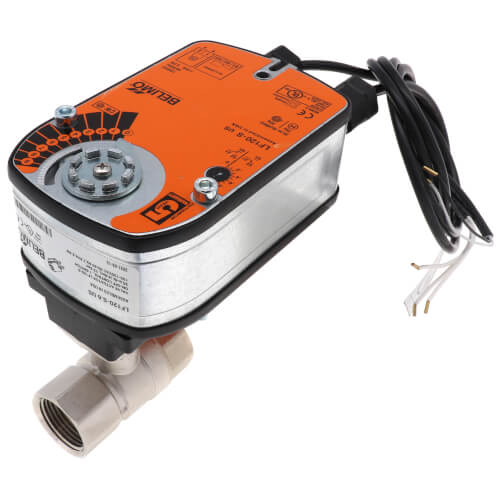

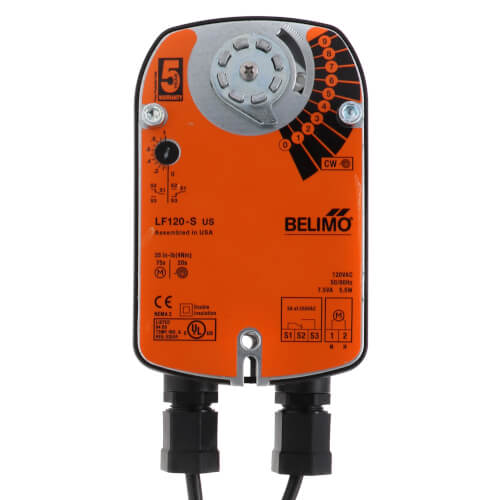

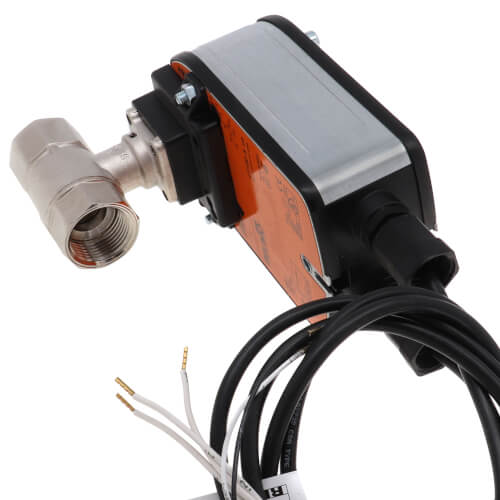

BELIMO B225+LF120-S 1 inch B2 Series 2-Way Characterized Control Valve with Spring Return Actuator 30 Cv

Product Description

Explore the precision and efficiency of the BELIMO B225+LF120-S, a 1-inch B2 Series 2-Way Characterized Control Valve with Spring Return Actuator designed for 30 Cv flow capacity. This valve integrates seamlessly into HVAC systems requiring accurate control.

• Features an innovative characterizing disc to deliver an equal percentage flow characteristic.
• Optimized for part-load performance, ensuring controlled, slow increase in flow.
• Ideal for diverse applications including air handling and fan coil heating or cooling.

Product Highlights

The BELIMO B225+LF120-S valve is engineered for stability in thermal control, making it a go-to option for HVAC professionals. The valve's design reduces flow through a specialized combination of a hole in the ball and a configured aperture in the disc, promising precise control even in variable flow settings.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225+LF120-S

Technical Specifications

• Type: 2 Way NPT
• Action: 90-degree Rotation
• Material: Stainless Steel (Ball & Stem), Forged Brass (Body)
• Weight: 4.75 pounds
• Connection Type: Female Threaded
• Body Pressure Rating: 600 psi
• Close Off Pressure: 200 psi
• Flow Capacity (Cv): 30
