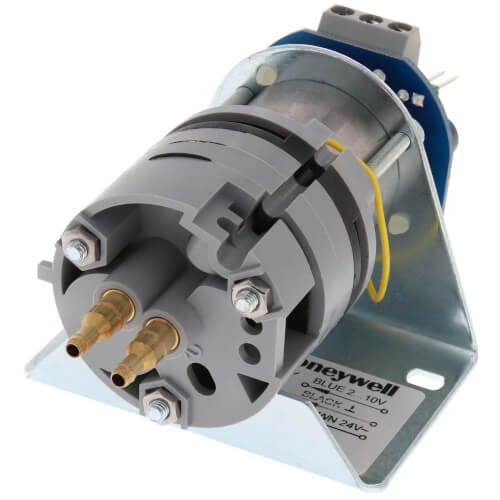

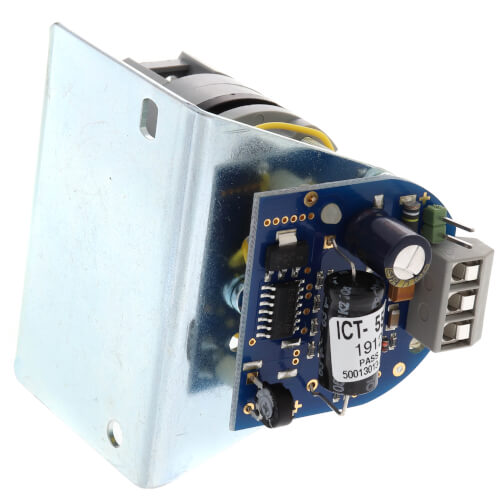

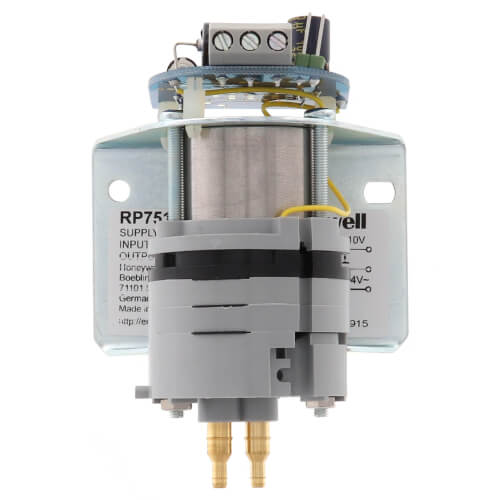

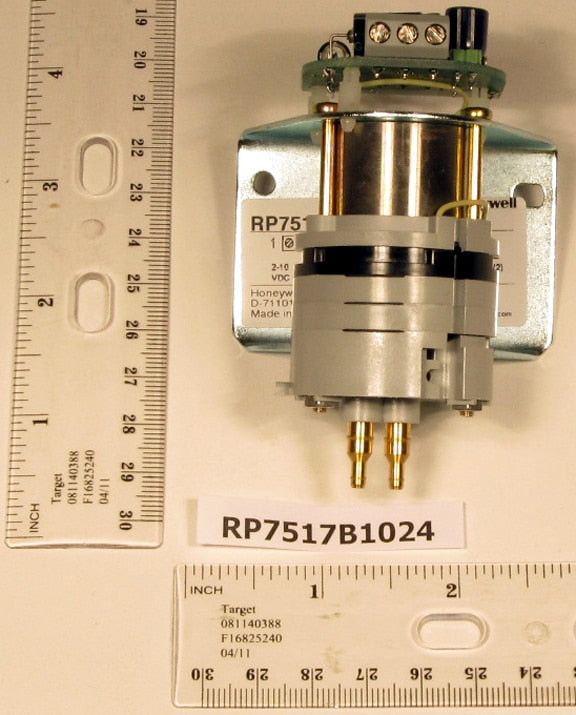

Honeywell RP7517B1024 Electronic Pneumatic Transducer 24 Vac

Product Description

The Honeywell RP7517B1024 is an electronic pneumatic transducer designed for converting electrical signals into proportional pneumatic outputs. Its robust design and reliable performance make it suitable for a variety of HVAC and industrial applications.

• Converts 2 to 10 Vdc electrical input into 3 to 15 psi pneumatic output
• Dual barb fittings for 1/4 inch or 5/32 inch O.D. plastic tubing
• Operates within 5 to 95% relative humidity range

Product Highlights

This transducer is ideal for systems that require precise control of pneumatic conditions. It offers direct-acting operation and is factory calibrated for immediate installation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RP7517B1024

Technical Specifications

• Output Pressure Range: 3 to 15 psi
• Maximum Operating Temperature: 131 F
• Input Signal: 2 to 10 Vdc at 0.1 mA max
• Voltage: 24 Vac external transformer
• Electrical Connections: Screw terminals for 14 to 22 gauge wire
• Dimensions: 2 7/16 inches wide x 3 3/8 inches high x 1 7/8 inches deep
• Weight: 0.47 lbs
