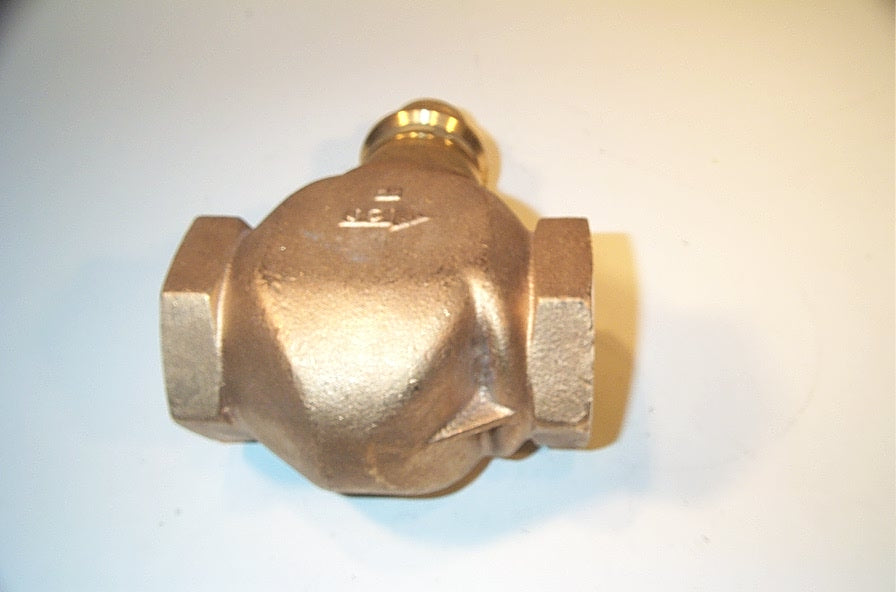

Johnson Controls VG7243RT+823E00 Series VG7000 Globe Valve Pneumatic Actuator

Product Description

The Johnson Controls VG7243RT+823E00 globe valve is engineered for the precise regulation of hot and chilled water, as well as 100 psig saturated steam. Constructed with a stainless steel trim, this valve is designed with durability and functionality in mind. Its pneumatic actuator, part of the MP82 series, ensures reliable performance and control.

• Capable of handling fluid temperatures ranging from 35 to 338 degrees Fahrenheit.
• Designed with spring-loaded PTFE and elastomer V-rings to enhance sealing efficiency.
• Supports a maximum supply air pressure of 25 psig for robust operations.

Product Highlights

This valve boasts an ANSI Class 250 static pressure rating, making it suitable for both factory and field assembly setups. Its compatibility with optional accessories such as the V-9502-95 Positioner adds versatility to its applications in industrial settings.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7243RT+823E00

Technical Specifications

• Valve Type: Globe Valve
• Material: Stainless Steel Trim
• Actuator Type: Pneumatic
• Temperature Range: 35 to 338 degrees Fahrenheit
• Steam Pressure: 100 psig saturated steam
• Maximum Air Supply Pressure: 25 psig
• Pneumatic Actuator Series: MP82
