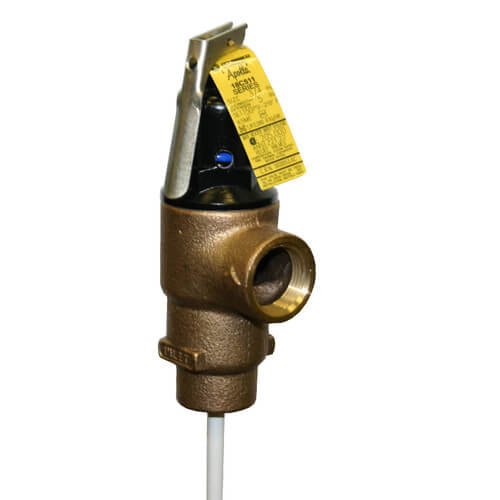

Apollo Valves 18C-542-4-125 1-1/2 TPC 5,125,000 BTU Capacity T & P Relief Valve w/ 4 Element

Product Description

The Apollo Valves 18C-542-4-125 1-1/2 TPC 5,125,000 BTU Capacity T & P Relief Valve w/ 4 Element is designed to protect high capacity commercial hot water heaters and storage tanks. It features a bronze body, a coated element to prevent corrosion, and is CSA listed and certified.

• ASME Section IV Certified
• 3/4 through 2 NPT Connections
• CSA Listed and Certified to ANSI Z21.22

Product Highlights

This T&P valve provides reliable protection for commercial water heaters. It is designed to release pressure to ensure safety and efficiency.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 18C-542-4-125

Technical Specifications

• Body Material: ASTM B584 Bronze
• Seat Stem Material: ASTM B16 Brass
• Seat Disc Material: Silicone
• Element Tube Coating: Nylon
• Element Spring: Type 304 Stainless Steel
• Element Pin: Type 302 Stainless Steel
• Inlet Type: MNPT
• Outlet Type: FNPT
• Max Temperature: 210°F
• Height: 11.56 inches
• Width: 2.5 inches
• Thermostat Length: 4 inches
• Preset PSI Setting: 125 psi
• CSA Rating: 1,200,000 BTU/hr
• ASME Rating: 5,125,000 BTU/hr
• Country of Origin: United States
