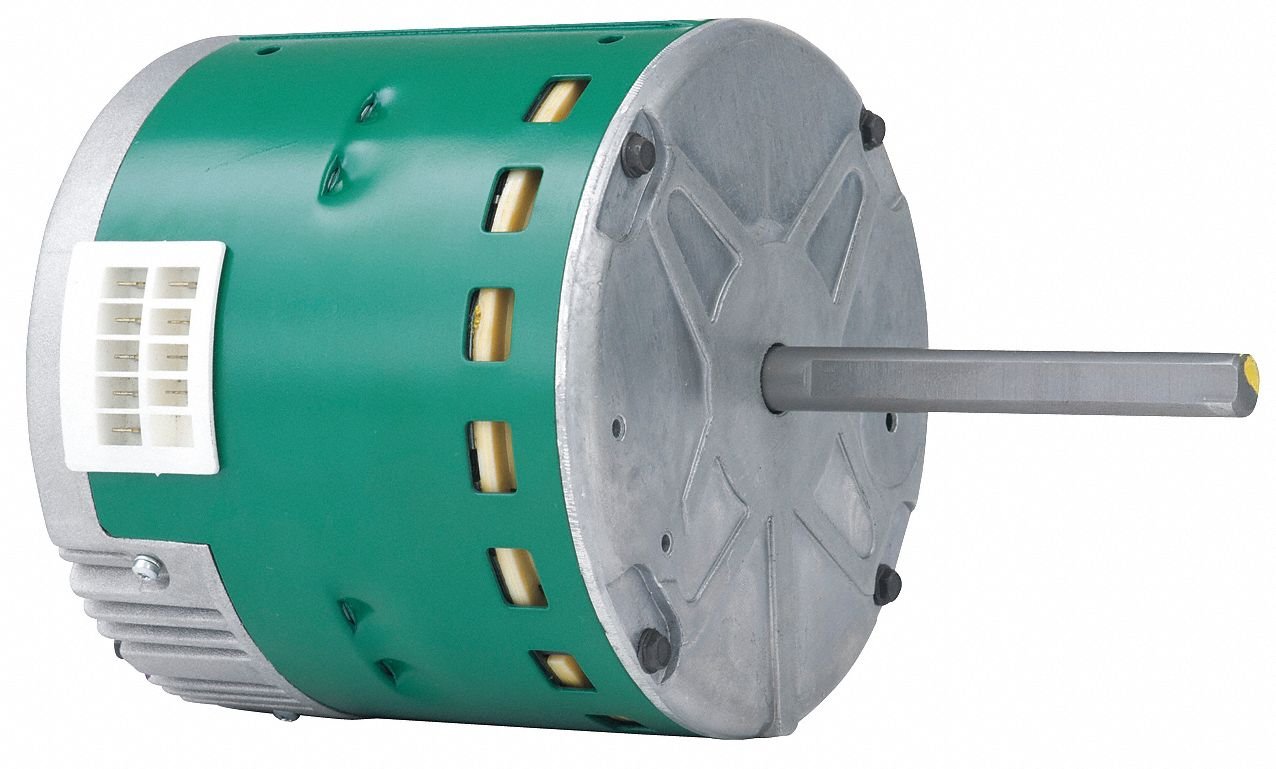

Genteq 6703 Brushless DC Motor 1/3 HP 1050 RPM

Product Description

The Genteq 6703 Brushless DC Motor is engineered for efficiency and durability, operating at 1/3 horsepower with 1050 RPM. Ideal for HVAC applications, this motor supports 208-230/277 Volt operations.

• Five-speed settings for flexible performance adjustments.
• Designed with a Band motor mounting type for secure installation.
• Robust steel frame material enhances longevity under continuous duty.

Product Highlights

This motor is excellent for replacing or upgrading air handler systems, offering reliable operation with thermal protection and an open air-over motor enclosure design. The dual shaft rotation (CW/CCW) adds to installation versatility.

Product Information

Standard Information

• Brand: Genteq
• MPN: 6703

Technical Specifications

• Horsepower: 1/3 HP
• RPM: 1050
• Voltage: 208-230/277V AC
• Frame Size: 48
• Motor Bearings: Ball
• Motor Design: ECM
• Motor Shaft Design: Flat
• Motor Mounting Type: Band
• Max. Ambient Temp: 55 Degrees C
• Shaft Length: 3 15/16 inches
