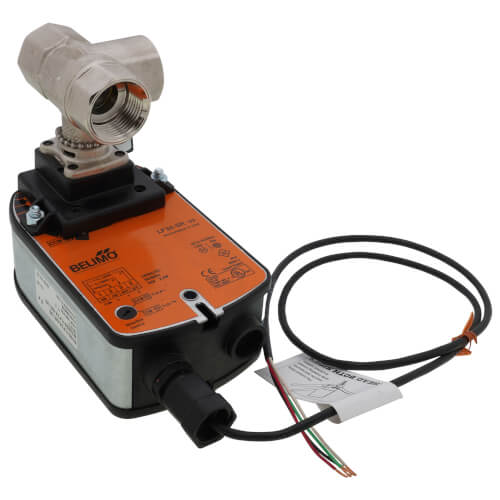

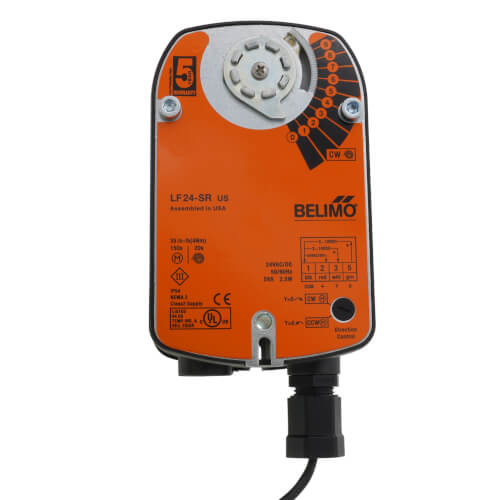

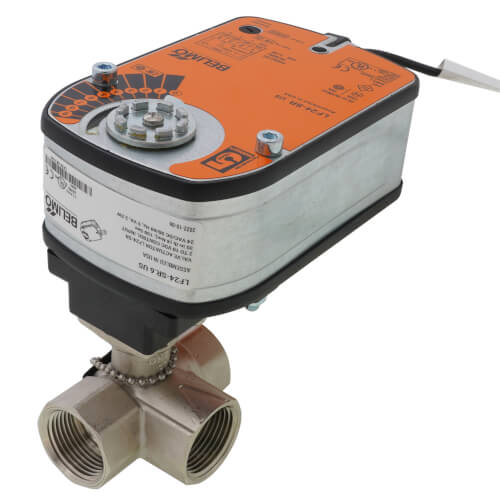

BELIMO B325+LF24-SR 1 Inch 3-Way CCV Spring Return Modulating Actuator

Product Description

The Belimo B325+LF24-SR is a one-inch, three-way control valve combined with a spring return modulating actuator designed for reliable operation in HVAC systems. This actuator is well-suited for applications involving chilled or hot water and up to 60% glycol solutions. The assembly ensures zero percent leakage from A to AB and less than two percent leakage from B to AB, enhancing system efficiency and performance.

• Optimized for chilled and hot water applications including 60% glycol.
• Guarantees virtually zero leakage enhancing system reliability and performance.
• Engineered with a spring return fail-safe mode, providing an added layer of operation security.

Product Highlights

The actuator operates with a torque of 35 pound-inches, a power supply of 24 VAC, and features modulating control capability. Its fail-safe mode ensures functionality continuation in case of power loss.

Product Information

Standard Information

• Brand: Belimo
• MPN: B325+LF24-SR

Technical Specifications

• Size: 1 inch
• Torque: 35 lb-in
• Power Supply: 24 VAC
• Actuator Type: Modulating
• Fail Safe Mode: Spring Return
• Max Differential Pressure: 50 psi
• Power Consumption: 2.5W (running), 1W (holding)
