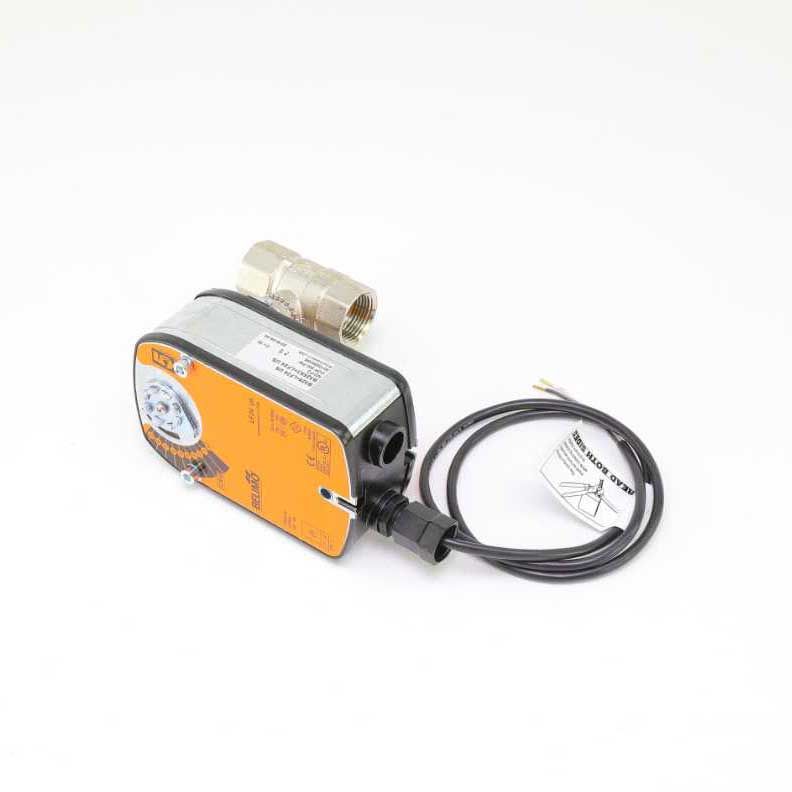

Belimo B325+LF24 Ball Valve Assembly 24V Stainless Steel

Product Description

The Belimo B325+LF24 Ball Valve Assembly is precision-engineered to provide superior control in heating and cooling systems. This unit includes a comprehensive valve setup, integrating a 24V motor, spring return actuator, and robust stainless steel trim for optimal performance.

• Equipped with a 1 inch NPT connection and 35 inch-pound torque, allowing for reliable on/off operation.
• Features a cv 30 flow rate, making it ideal for medium to large scale HVAC systems.
• Designed for ease of installation and maintenance, enhancing system uptime and efficiency.

Product Highlights

The assembly is designed for three-way mixing or diverting applications and offers zero percent leakage for critical operations. Its 24V DC power requirement assures low energy consumption with high durability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B325+LF24

Technical Specifications

• Weight: 5.00 pounds
• Connection Size: 1 inch NPT
• Flow Rate (cv): 30
• Actuator Type: Spring return
• Electrical Specification: 24V DC, 24 VAC
• Applications: Suitable for chilled or hot water systems up to 60% glycol
• Leakage Rate: 0% from A to AB, < 2% from B to AB
